| PART NO. | A | B | C | D | E | FASTENER |
|---|---|---|---|---|---|---|
| 6055S | 6″ | 1-7/32″ | 15/16″ | 2″ | 2-1/4″ | 5/16″-18UNC |
| 6056S | 8″ | 1-7/16″ | 1-3/16″ | 2″ | 2-3/4″ | 7/16″-14UNC |
| 6057S | 10″ | 1-13/16″ | 1-11/16″ | 3″ | 3-5/8″ | 7/16″-14UNC |
| 6058S | 12″ | 2-5/32″ | 1-15/16″ | 4″ | 3-1/2″ | 7/16″-14UNC |
| 6055S-PLT | Chafe Plate for Cleat 6″ | |||||
| 6056S-PLT | Chafe Plate for Cleat 8″ | |||||
| 6057S-PLT | Chafe Plate for Cleat 10″ | |||||
| 6058S-PLT | Chafe Plate for Cleat 12″ |

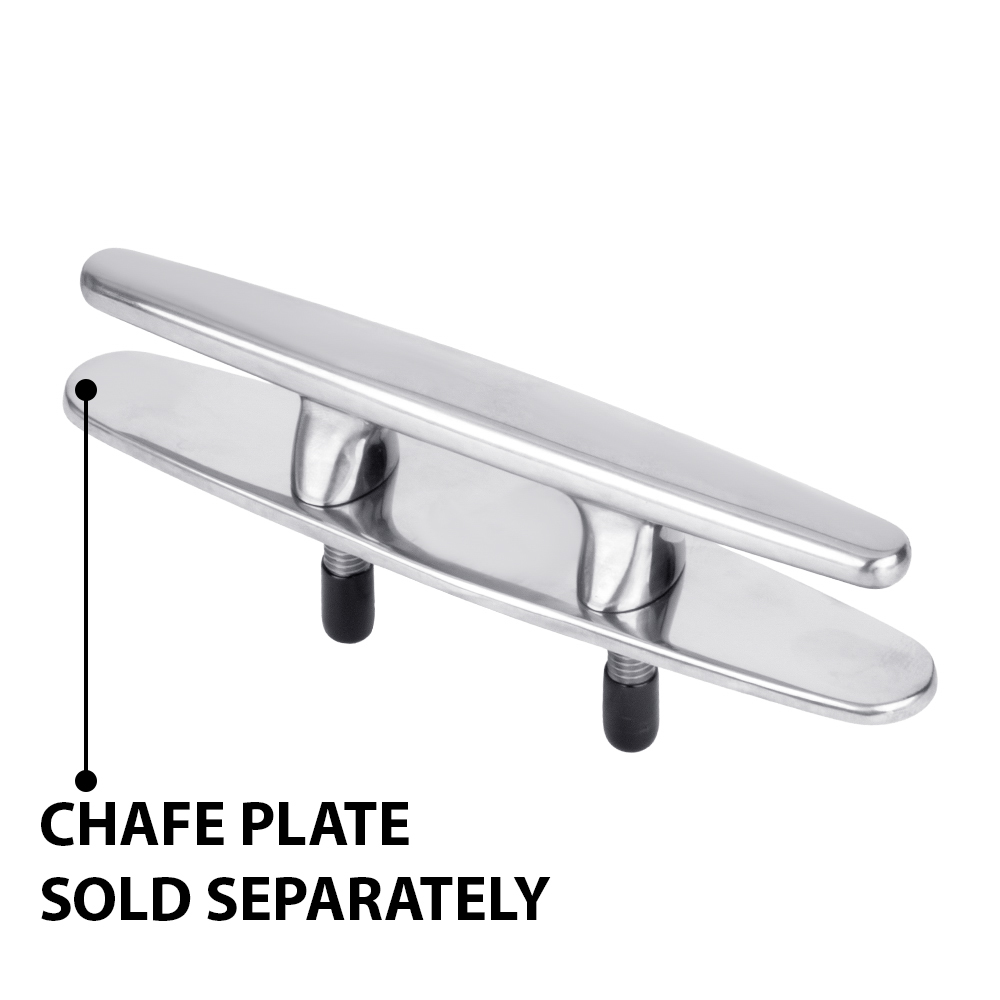

Marine arch stud mount cleat made of precision cast 316 marine grade stainless steel for corrosion resistance.
These heavy duty arch cleats are built to last for years in the saltwater environment.
Optional Chafe Plate for protection against wear against rope rub is sold separately. See the page here.
| U/M | Each |
|---|---|
| Composition | 316 Stainless Steel Stamped |
| Finish | High Polished |
