Additional information
| U/M | Each |
|---|---|
| Composition | Cast 316 Stainless Steel |
| Finish | High Polished |

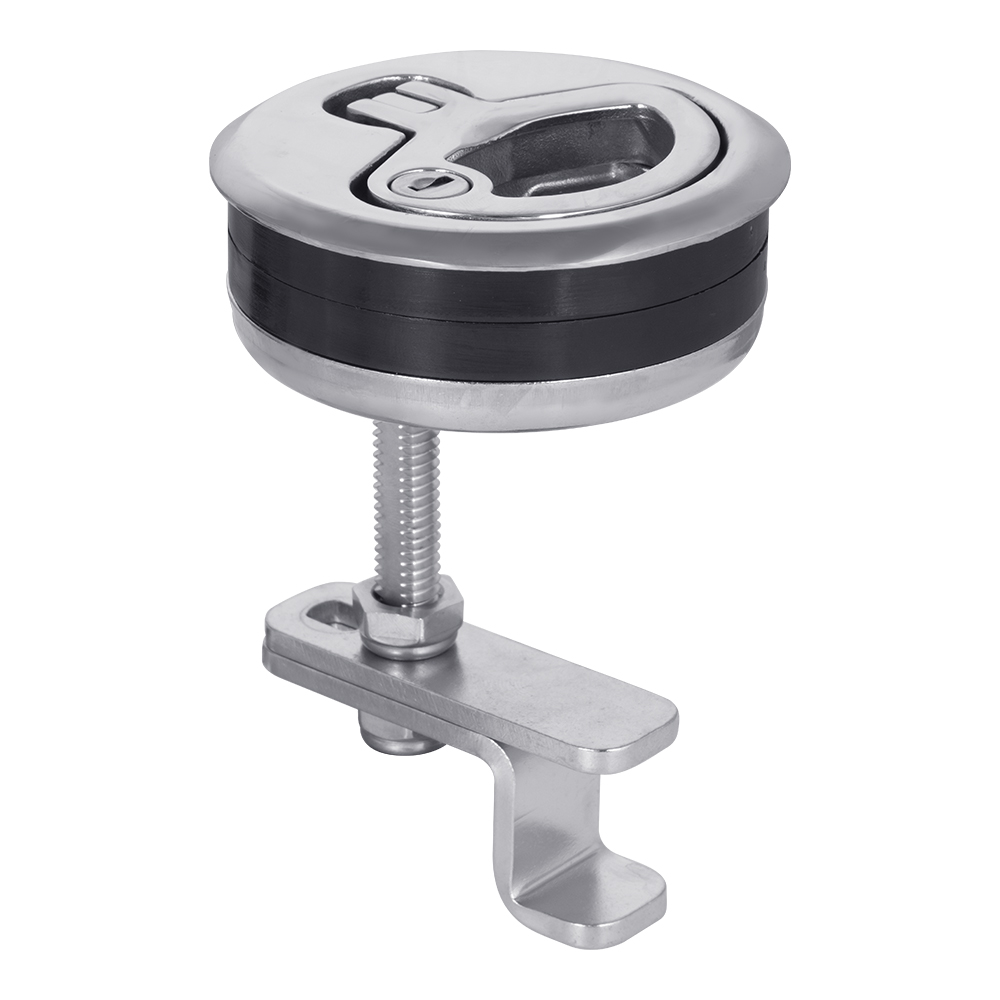

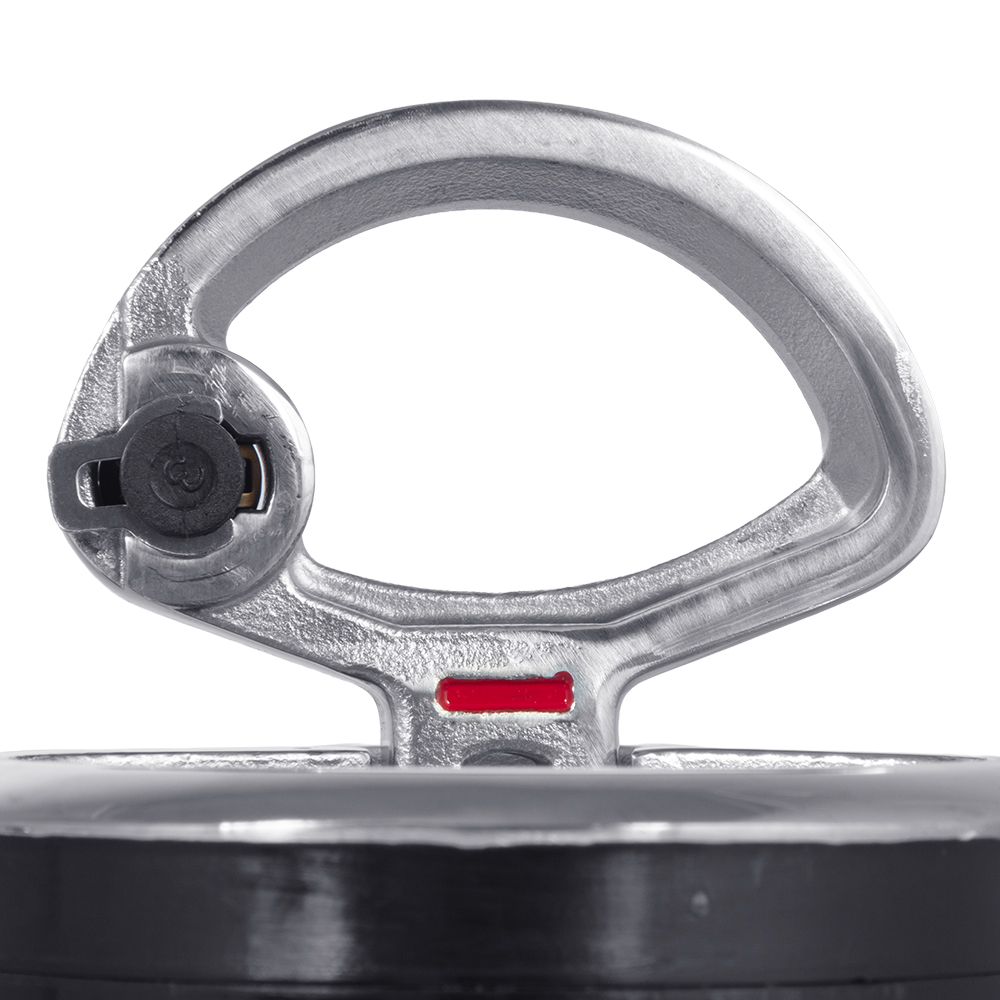

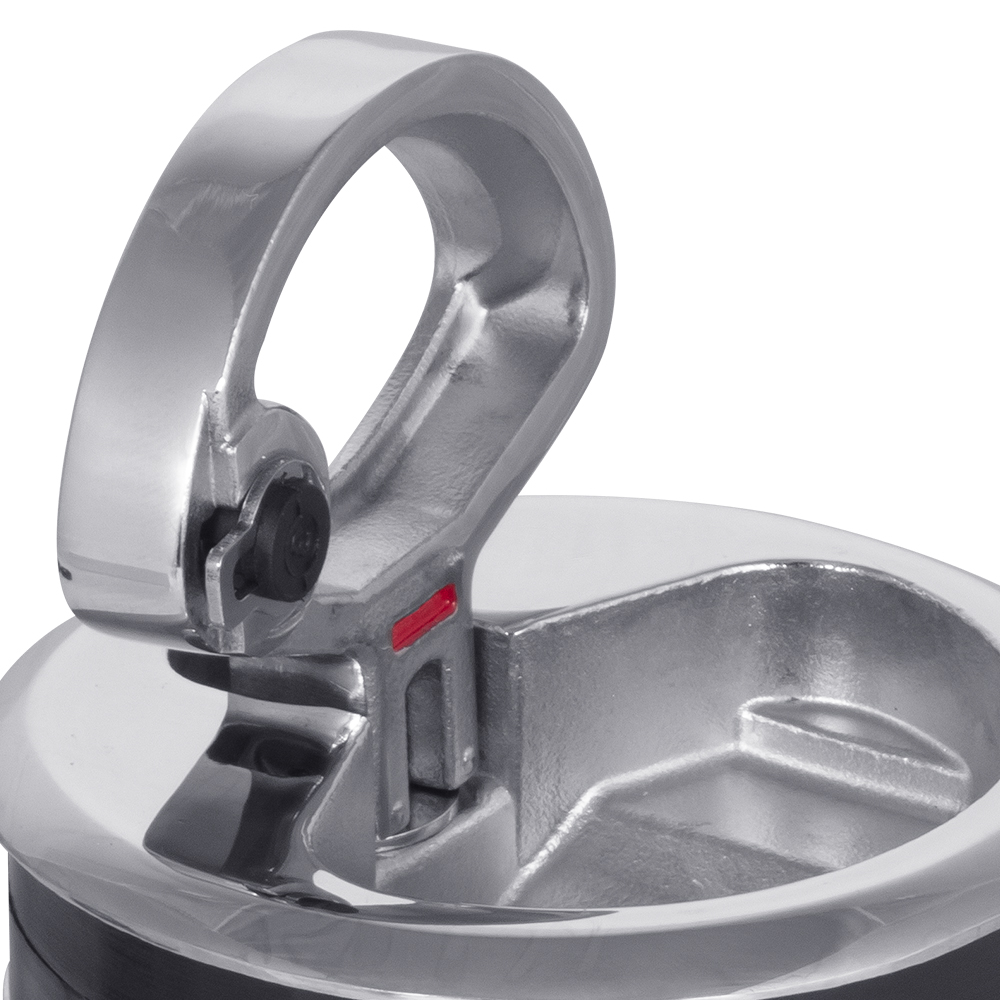

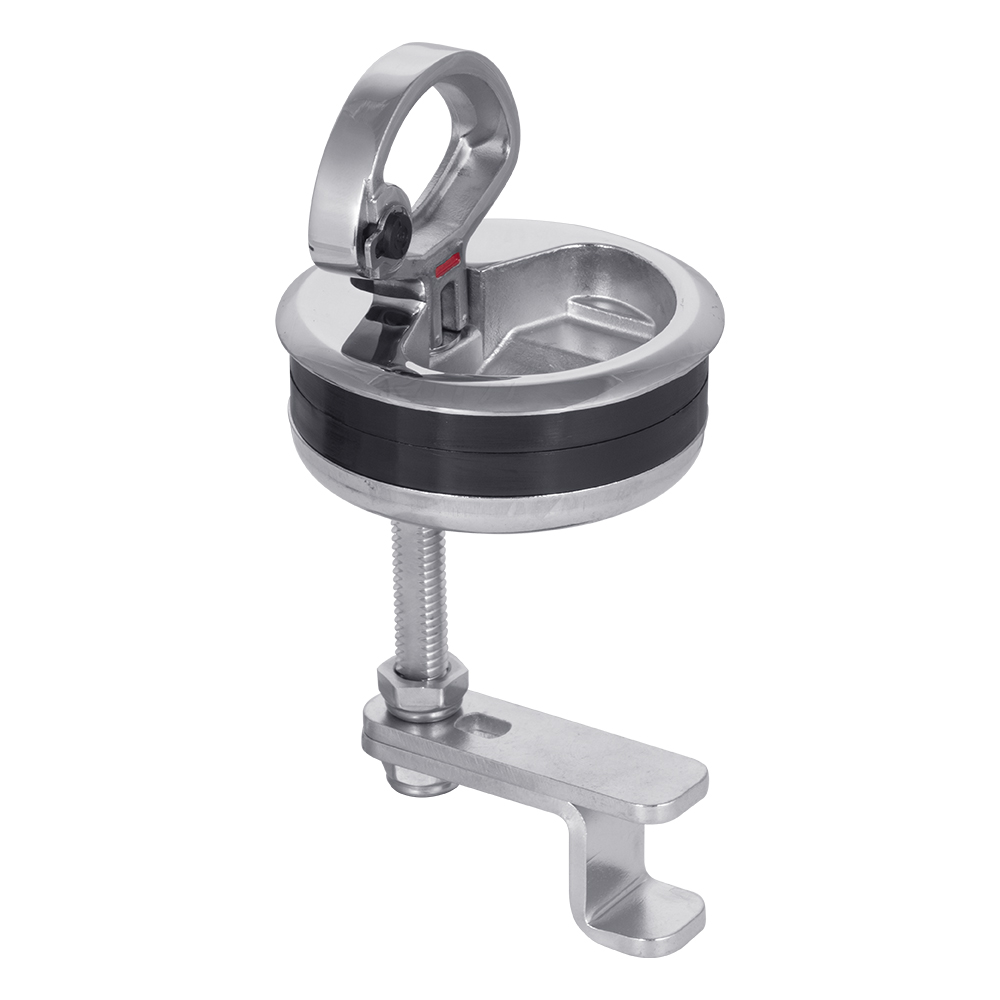

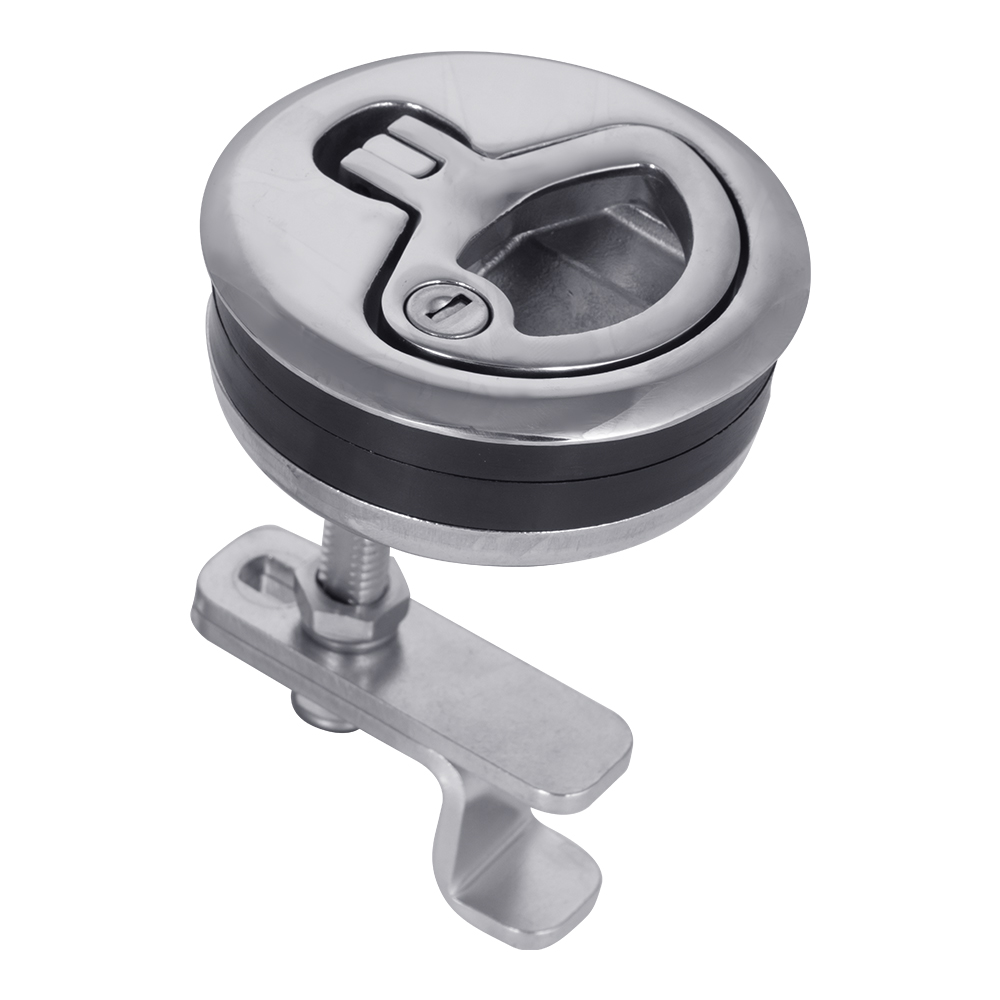

316 SS Cast Locking Round Compression Latch
316 SS Cast Locking Round Compression Latch
Features
- 316 Stainless steel cast
- Low profile
- Watertight
- Engineered to be fully configurable to fit all lid arrangements
- CA Prop 65*
| PART NO. | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| 7154SLK | 2” | 2-1/3” | 0” to 1” | 2-1/4” | 2-3/4” | 1/2” to 3-1/3” | 3/4” |
| 7155SLK | 2-1/2” | 3” | 0” to 1-1/4” | 2-1/4” | 2-3/4” | 7/8” to 3-7/8” | 3/4” |
Installation Guide:
Drawings:
Installed
