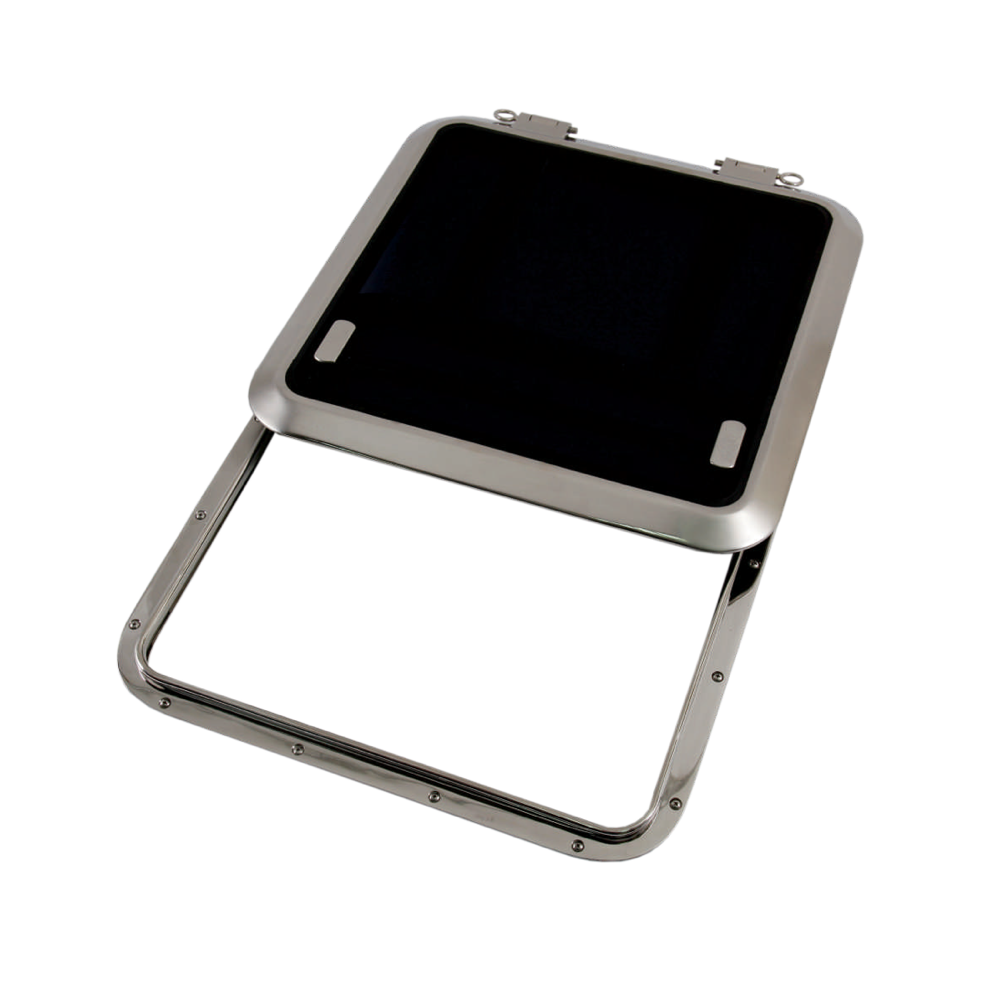

316 Stainless Low Profile Pilot Hatch | SLDH

MAN SHIP STAINLESS STEEL DECK HATCHES

CE Approved
UV Resistant Acrylic
Polished Mirror-Like Finish
Electro-polishing provides lasting protection against corrosion/rust
Standard Profile 1-7/8″ above deck
Outside Opening Available for Select Sizes
Double Opening Available for Select Sizes

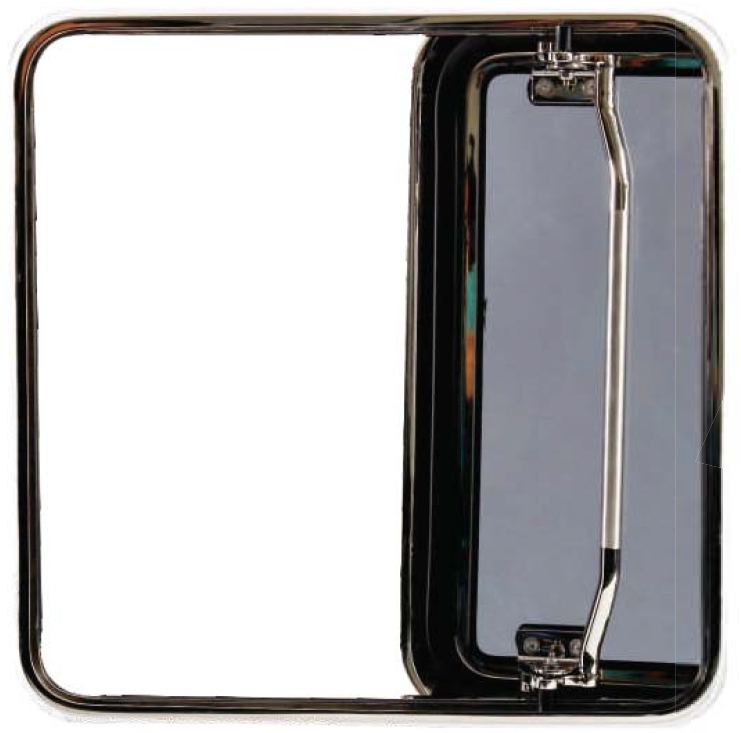

Inside Opening

PART NO.	A	B	C	D	E	F	R	R1	ACRYLIC THK	TRACK
SLDH-16	15-5/16″	15-5/16″	16-9/16″	16-9/16″	17-7/8″	17-7/8″	48mm	64mm	1/2″	236mm
SLDH-19	18-11/16″	18-11/16″	19-15/16″	19-15/16″	21-2/8″	21-1/4″	48mm	64mm	1/2″	322mm
SLDH-24	23-7/16″	23-7/16″	24-11/16″	24-11/16″	25-15/16″	25-15/16″	48mm	64mm	1/2″	442mm
SLDH-30	27-1/16″	29-1/16″	28-3/8″	30-5/16″	29-5/8″	31-9/16″	48mm	64mm	1/2″	585mm

Additional Features & Options: Click Here

Description

316 Stainless Low Profile Pilot Hatch | LDH

Features

• 316 Stainless Steel Rolled & Formed Frame
• Higher profile 1-7/8” height above deck
• CE Approved for Standard Configurations Below
• According to ISO/DIS 12216, approved for Area II, III, and IV for craft type “any”
• Tough, UV Glare Resistant 1/2” Acrylic Top
• Sanplane Gasket is oil resistant and weather resistant
• Hinges are adjustable by tightening the set screw providing more/less tension on the hinge
