316 Stainless T-Handle Rectangular Compression Latch

Features

316 Stainless Steel Cast
High Polished Finish
Low profile design that sits flush with the lid and keeps it watertight
Comfortable T-handle design for heavy floor hatches
Fits 3/4″ to 1-1/2″ door thicknesses
Fastener size #10-24

PART NO.	A	B	C	D	E	F	G	H
7176S	3-3/8″	2-11/16″	3-7/8″	3-1/4″	1-5/16″	2-1/4″ to 3″	1-3/16″	1/2″ to 5/8″

– Full assembly build options are listed below in the Description tab
– Strike plate catches sold separately here

Description

T-Handle Compression Latches are a great watertight option for comfort and grip when opening heavy floor hatches. These compression latches are cast in 316 marine grade stainless steel are made to a high polish finish. Features a low profile design which sits flush with cabinet/door/lid surface.

MODEL	CAM	SPACER & GASKETS
7176S	00-NO CAM .5 Dia x .362	00-NO GASKET

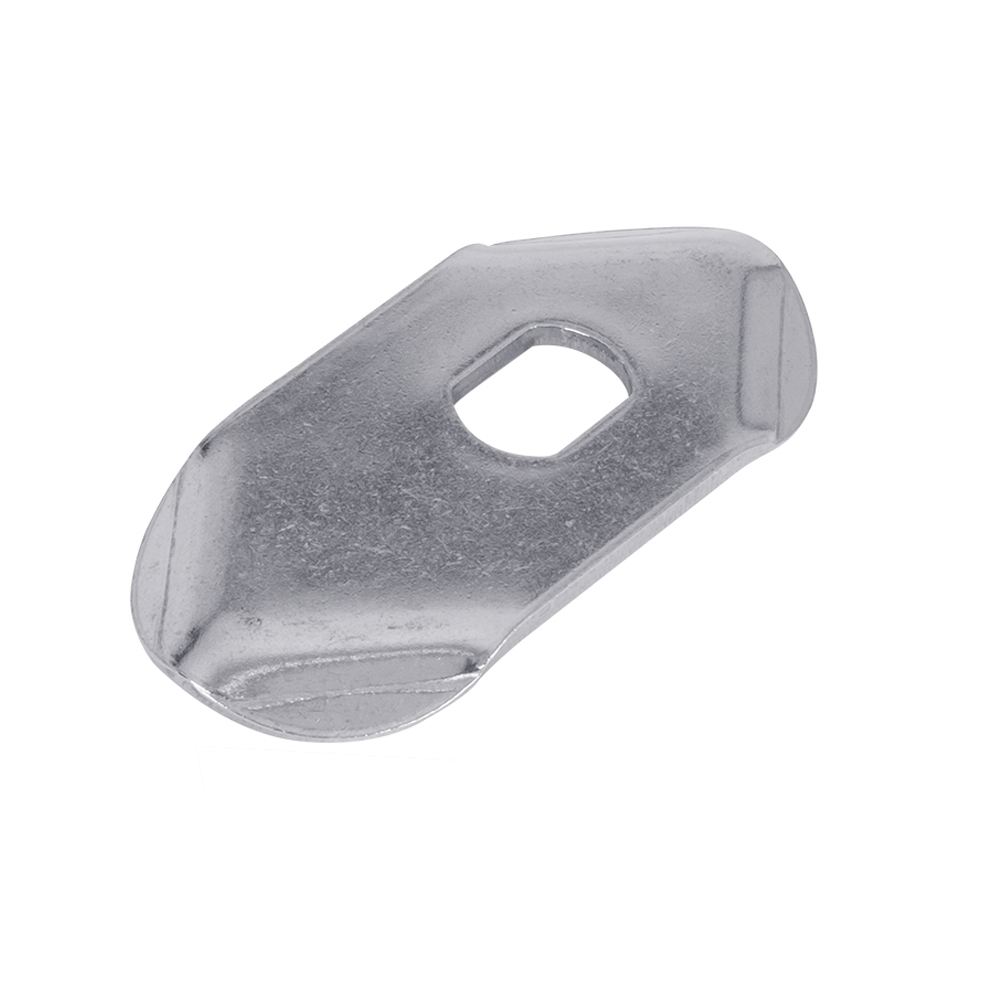

7177S	01-REVERSIBLE (7183S) .5 Dia x .362	01-1 GASKET (7177SLK-GSK1 BOTTOM)

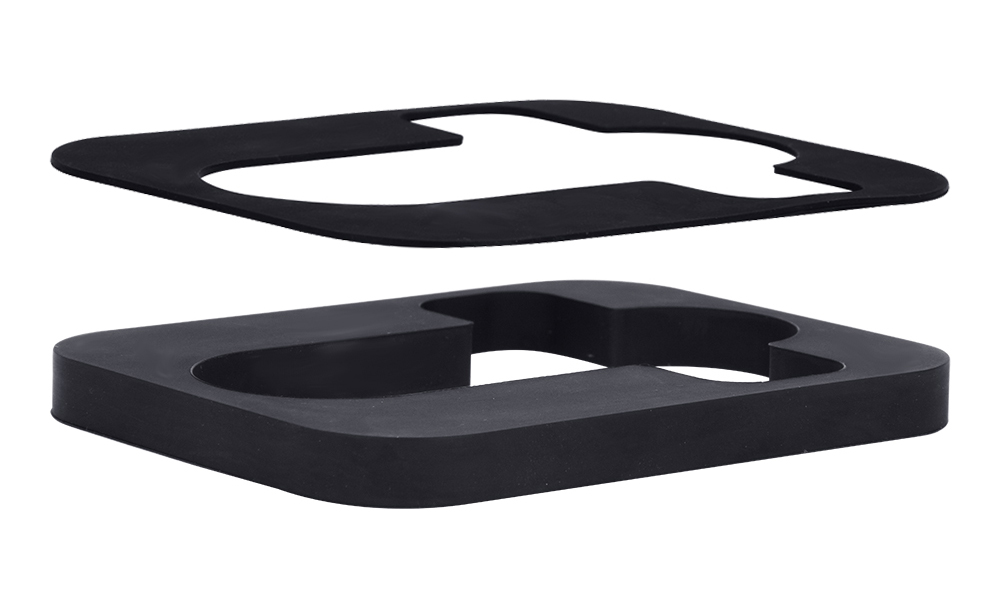

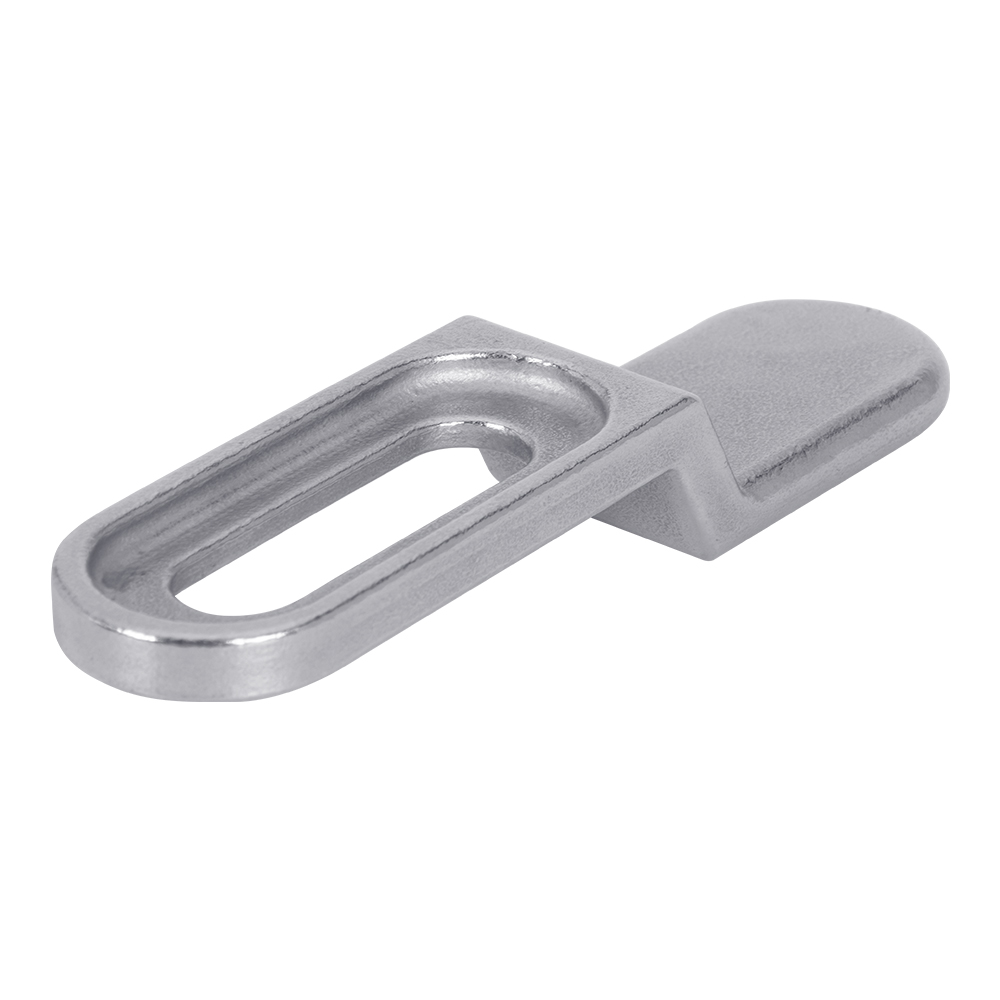

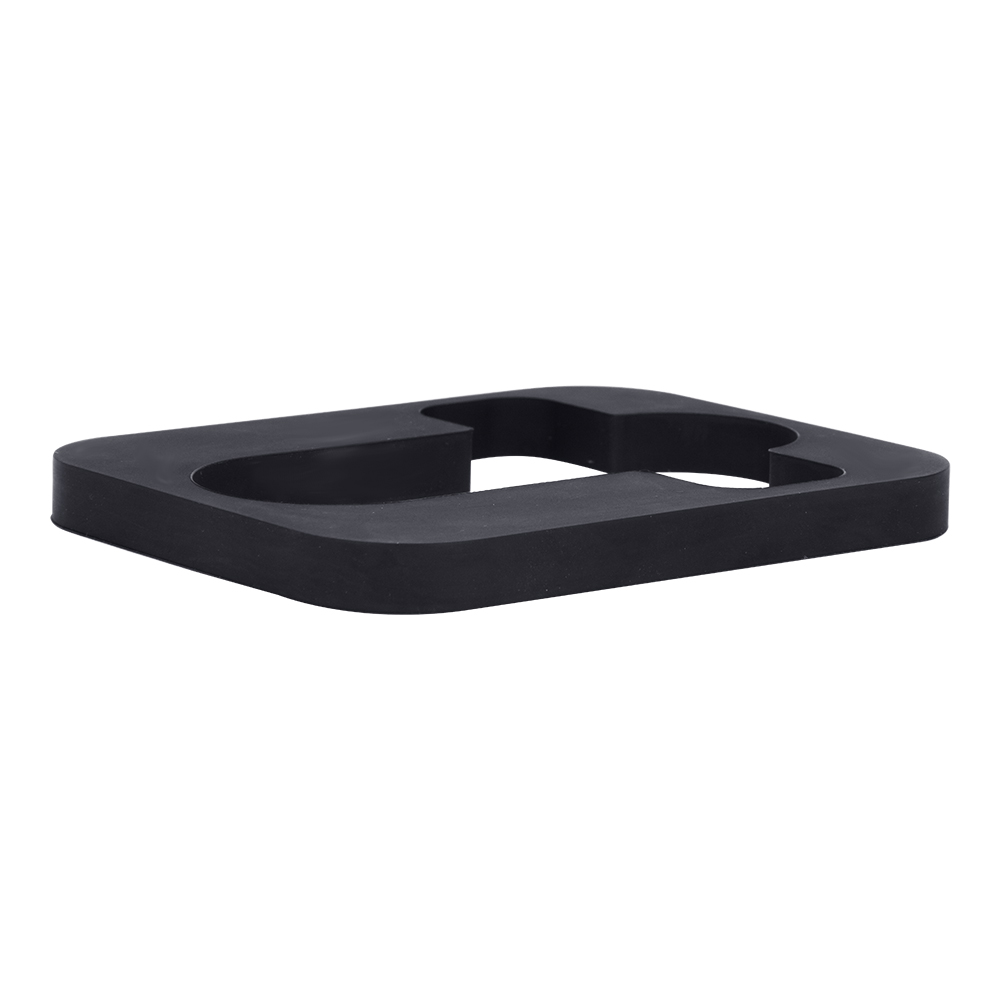

7177SLK	02-ADJUSTABLE (7185S) .5 Dia x .362	02-2 GASKET TOP & BOTTOM (7177SLK-GSK1 & 7177SLK-GSK2)
Example: 7177SLK-02-02 is the locking compression latch + adjustable cam 7185S + 2 gaskets
