Additional information
| U/M | Each |
|---|---|
| Composition | Tubing 304 Stainless Steel |
| Finish | High Polished |
Stainless Steel Quick Release (with Phender Pro®) Ladder
Stainless Steel Quick Release (with Phender Pro®) Ladder
Features
- 304 Stainless steel tubing
- Uses Big Sky Precision’s Phender Pro® Quick Release
- Ladder securely mounts onto bow and can be removed for convenient storage
- Bungee cord securing strap included
- Nylon bushing in between ladder segments for anti-rattling
- Built to ABYC H-41 Requirements
- Can Support up to 400lbs
| PART NO. | STEPS | A DEPLOYED | A STOWED | B | C | D | E |
|---|---|---|---|---|---|---|---|
| B00351RBW | 4 | 45-5/8″ | 16-3/8″ | 10″ | 5″ | 1-1/2″ | 1″ MAX |
| B00355RBW | 5 | 56″ | 16-7/8″ | 10″ | 5″ | 1-1/2″ | 1″ MAX |
Installation Guide:

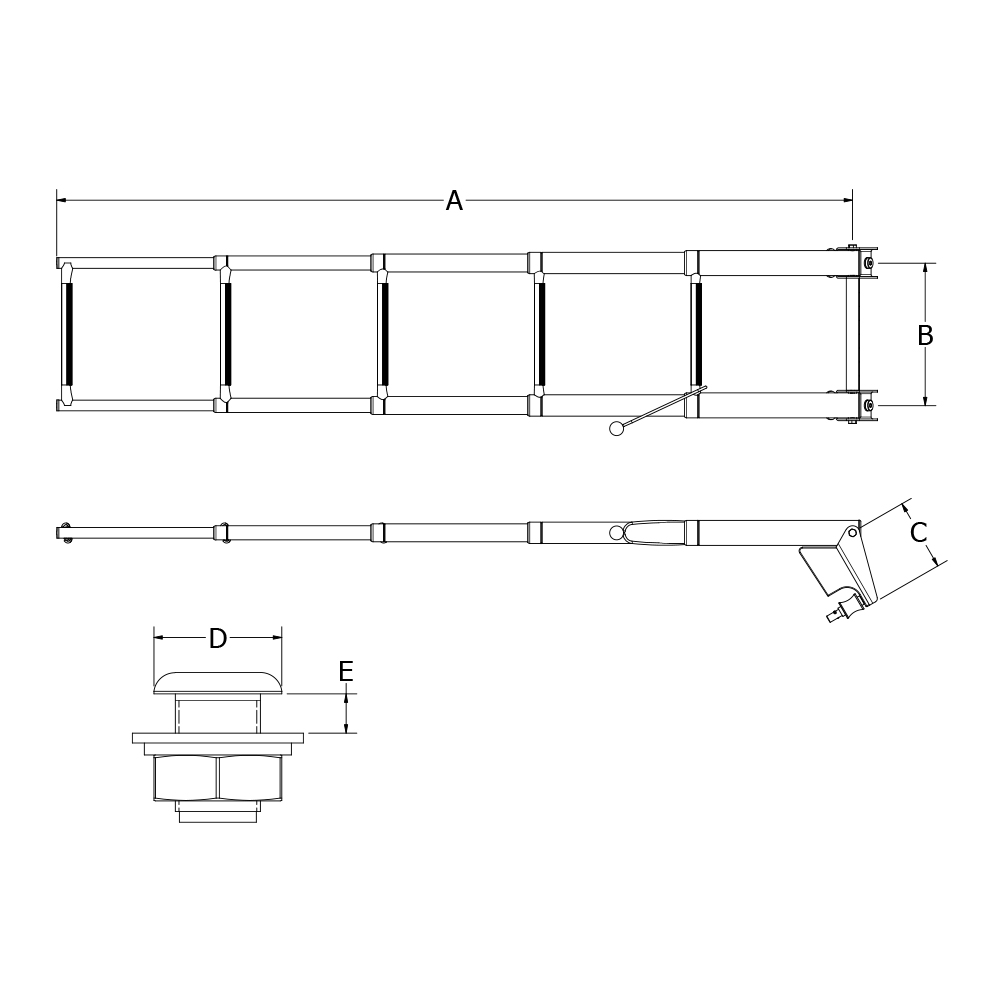

Drawings:
Installed
