Additional information
| U/M | Each |
|---|---|
| Composition | Cast 316 Stainless Steel |
| Finish | High Polished |

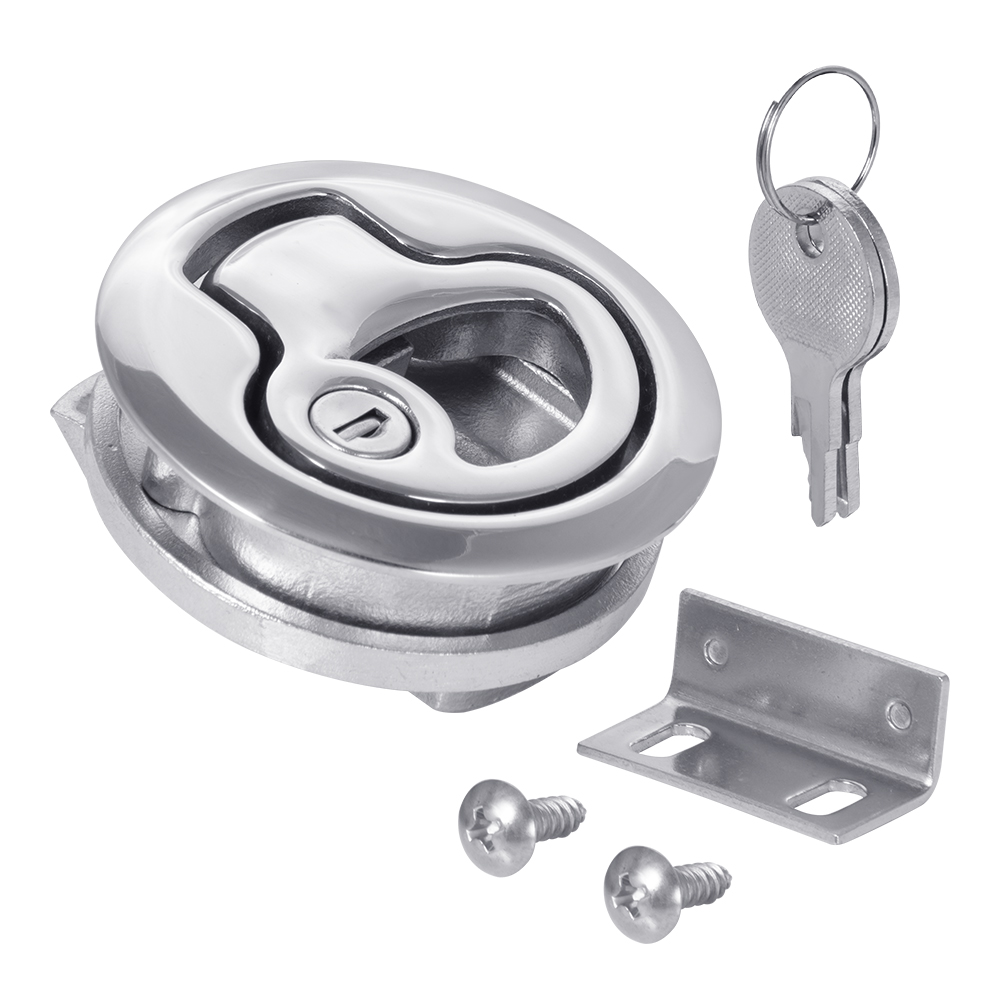

Heavy Duty 316 Stainless Steel Cast Round Slam Latch Locking
Heavy Duty 316 Stainless Steel Cast Round Slam Latch Locking
Features
- 316 Stainless steel cast
- Fastener #12 FH
- 3/4″- 7/8″ door thickness
- Easy lift handle
| PART NO. | LOCKING | A | B | C | D | PANEL THICKNESS | BACKING PLATE |
|---|---|---|---|---|---|---|---|
| 7132SLK-01 | Yes | 2″ | 2-3/8″ | 1-3/32″ | 1-19/32″ | 1/2″-11/16″ | 3/16″ |
| 7132SLK-03 | Yes | 2″ | 2-3/8″ | 1-3/32″ | 1-19/32″ | 1/16″-1/4″ | 5/8″ |
Installation Guide:
Drawings:

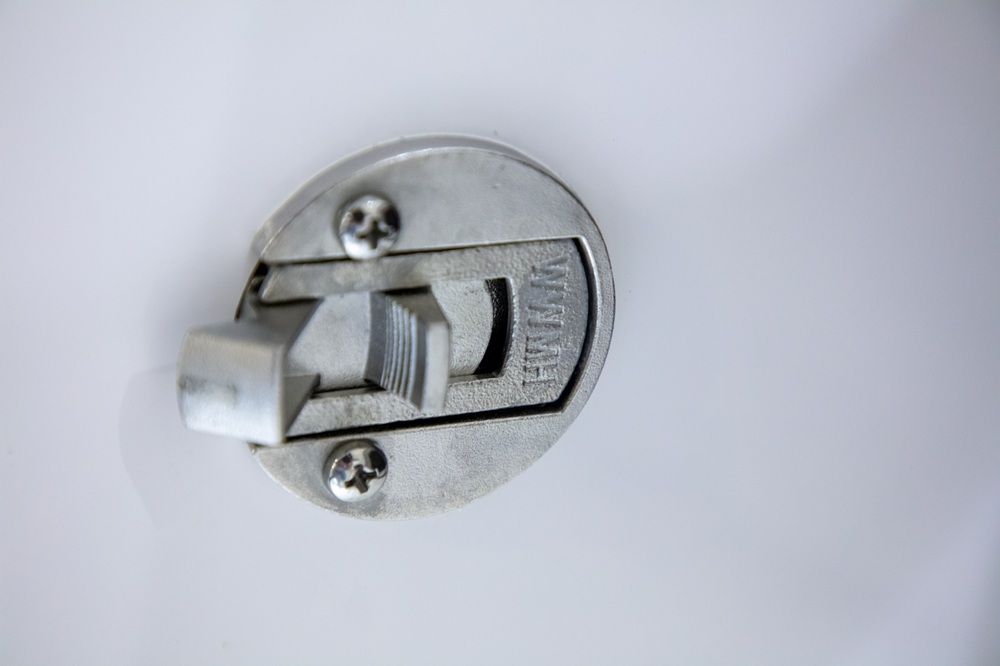

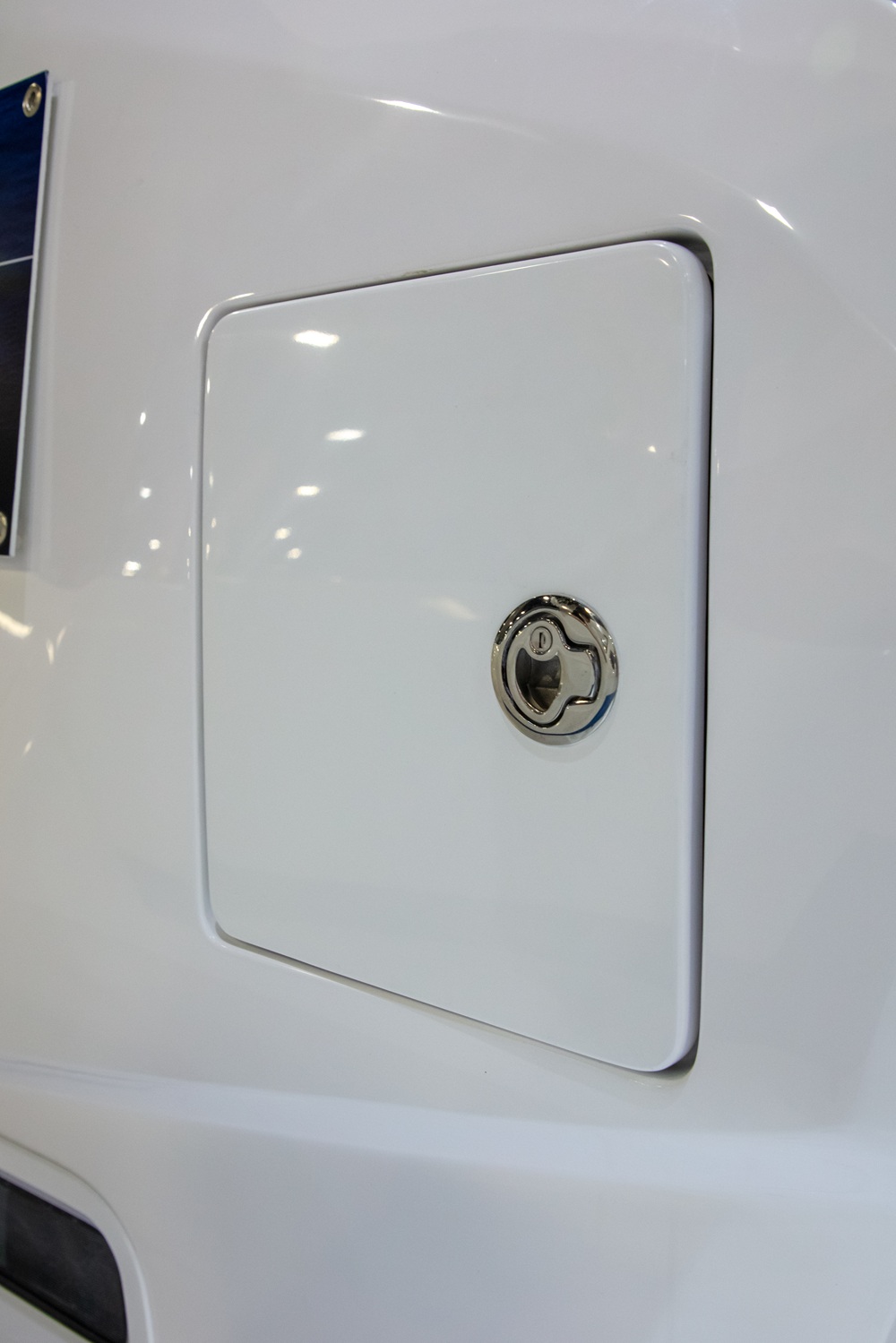

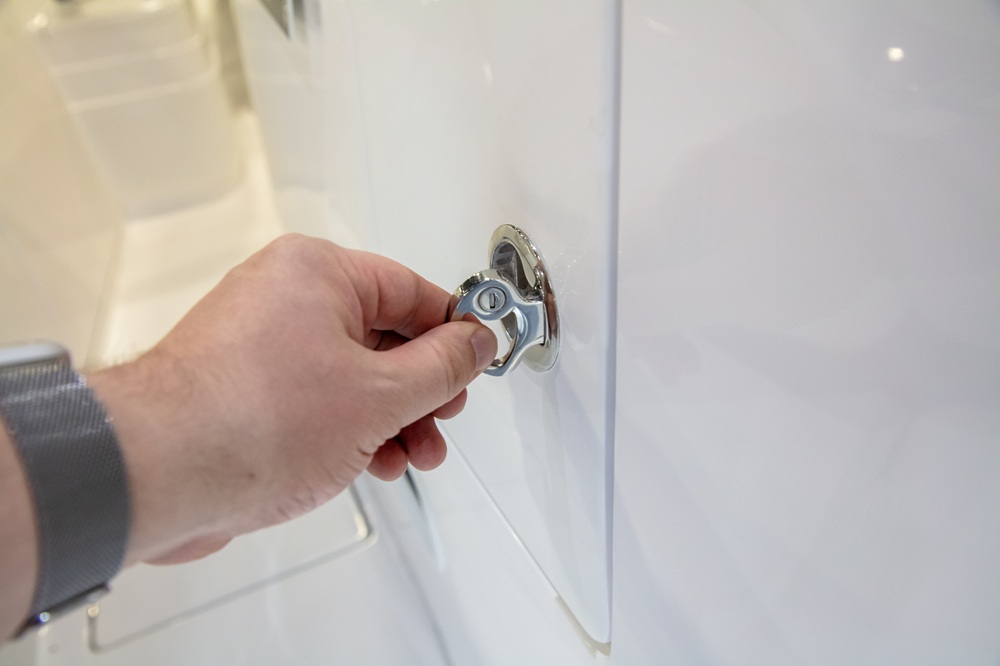

Installed
