Description

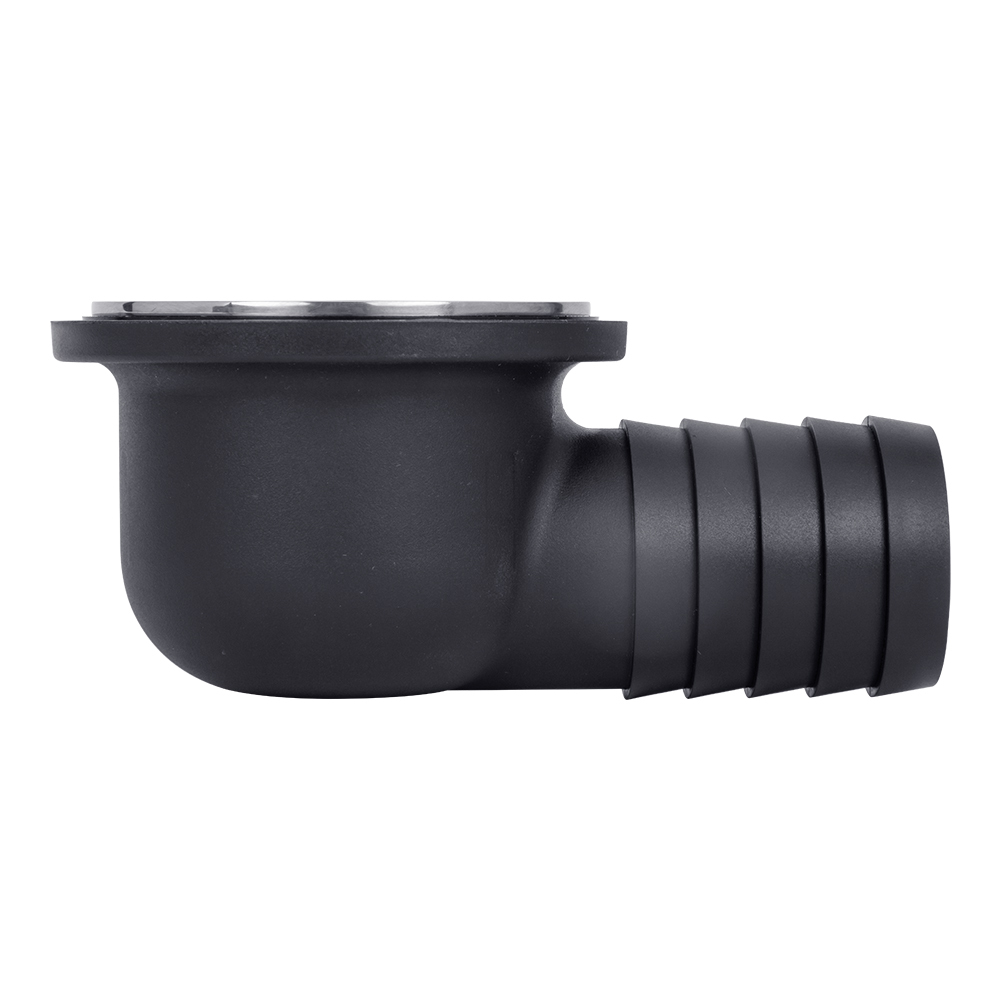

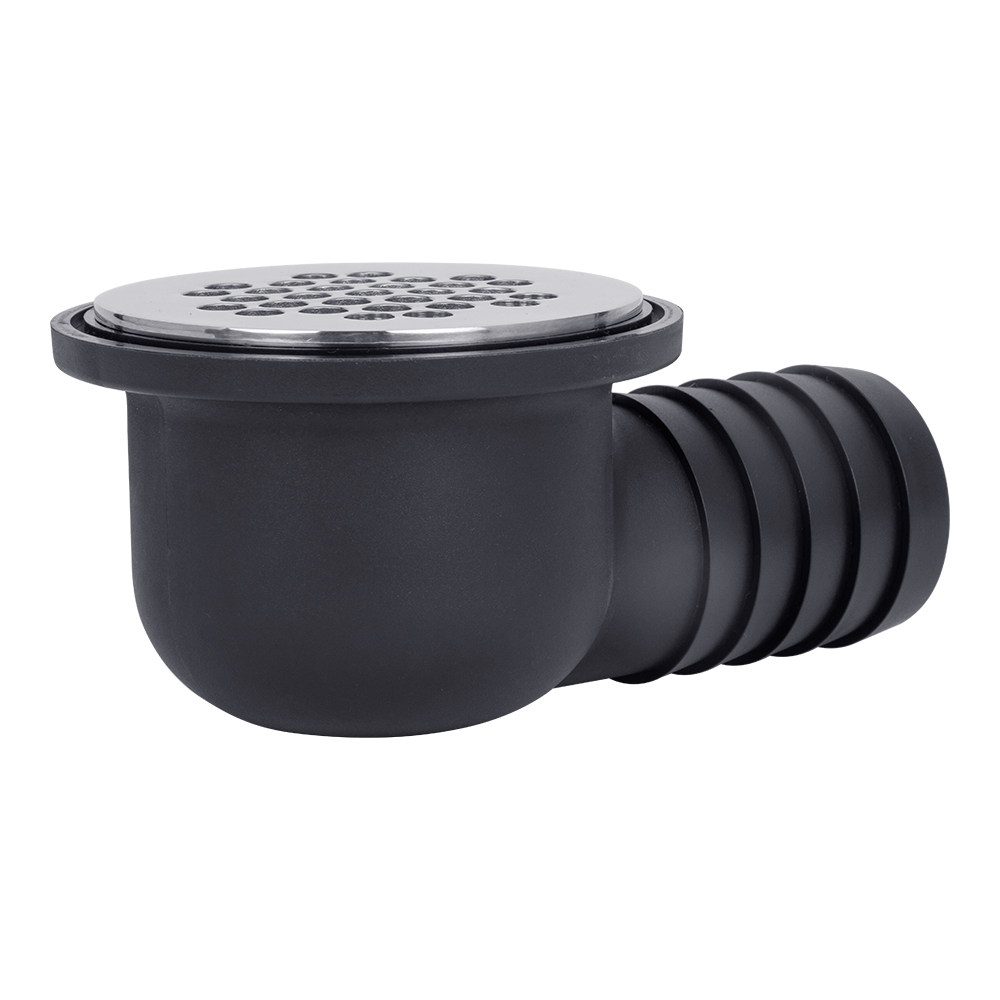

Nylon Flat Deck Drain
Every part of this drain has been engineered to drain better from the flat cover to the slight step down in the body. This drain is easy to clean with the removable cover by simply unscrewing it.
2″ Nylon Deck Drain
2″ Nylon Deck Drain
Features
-

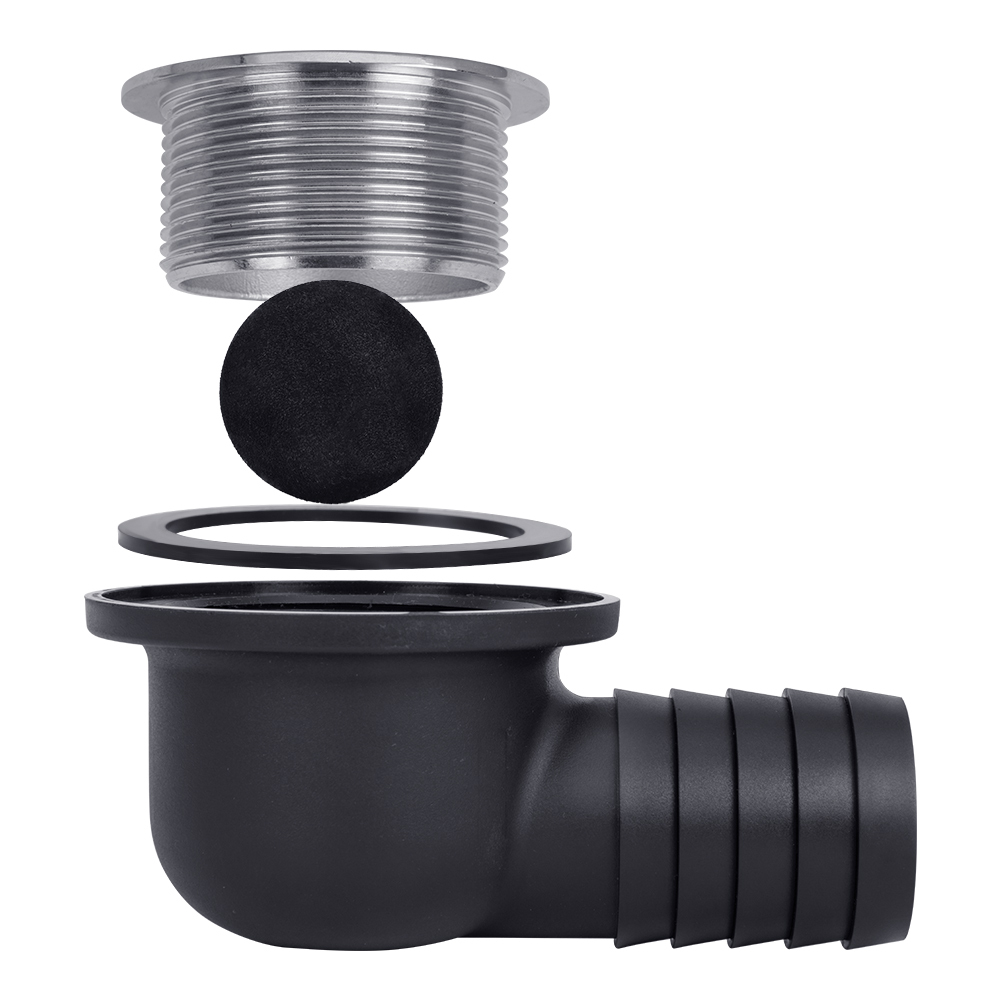

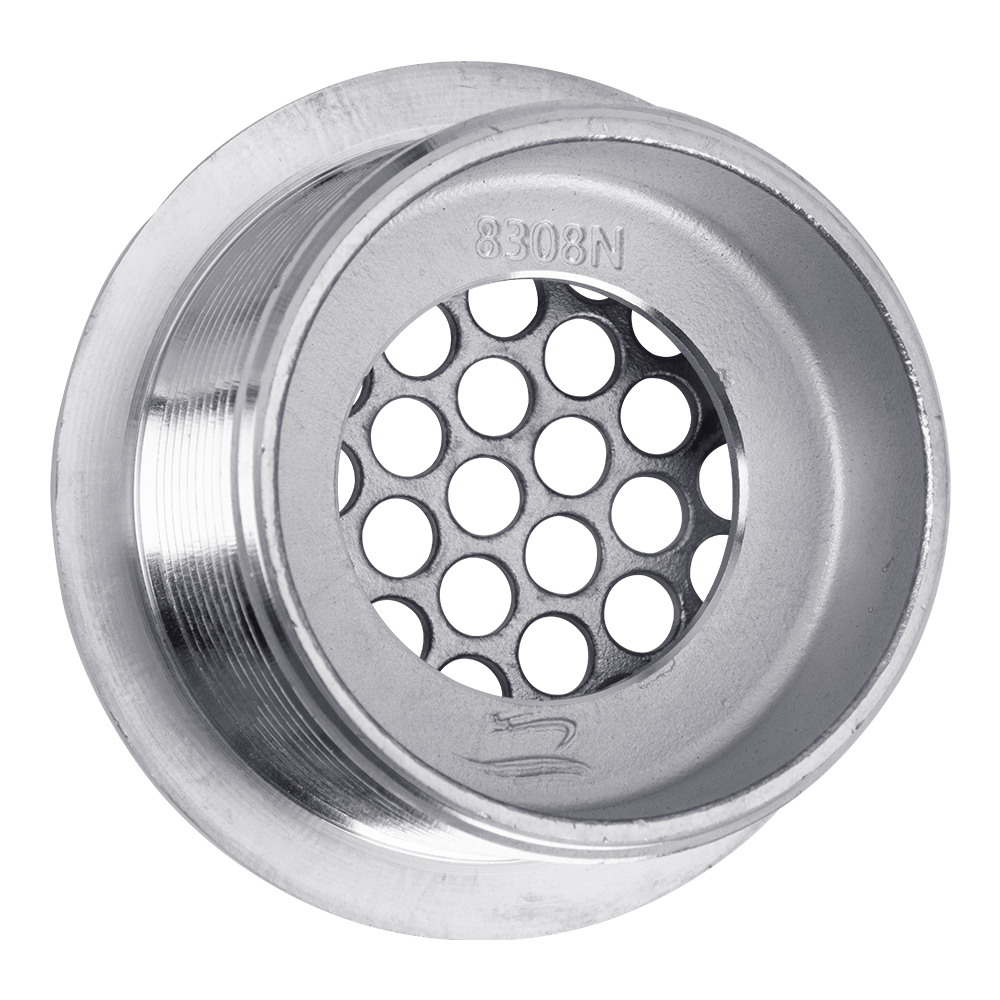

- Marine Grade Nylon & 316 Stainless Drain Cap
- Clean, fastner-less look with the drain cap threaded into the body
- Foam check ball to prevent backflow
| PART NO. | A | B | C | D | E | DECK THICKNESS |
|---|---|---|---|---|---|---|
| 8308N | 2″ | 3-1/2″ | 2-7/8″ | 6-3/16″ | 2-3/4″ | 0″ to 3/4″ |
Additional information
| U/M | Each |
|---|---|
| Composition | Cast 316 Stainless Steel, Nylon |
| Finish | Natural |
Installation Guide:

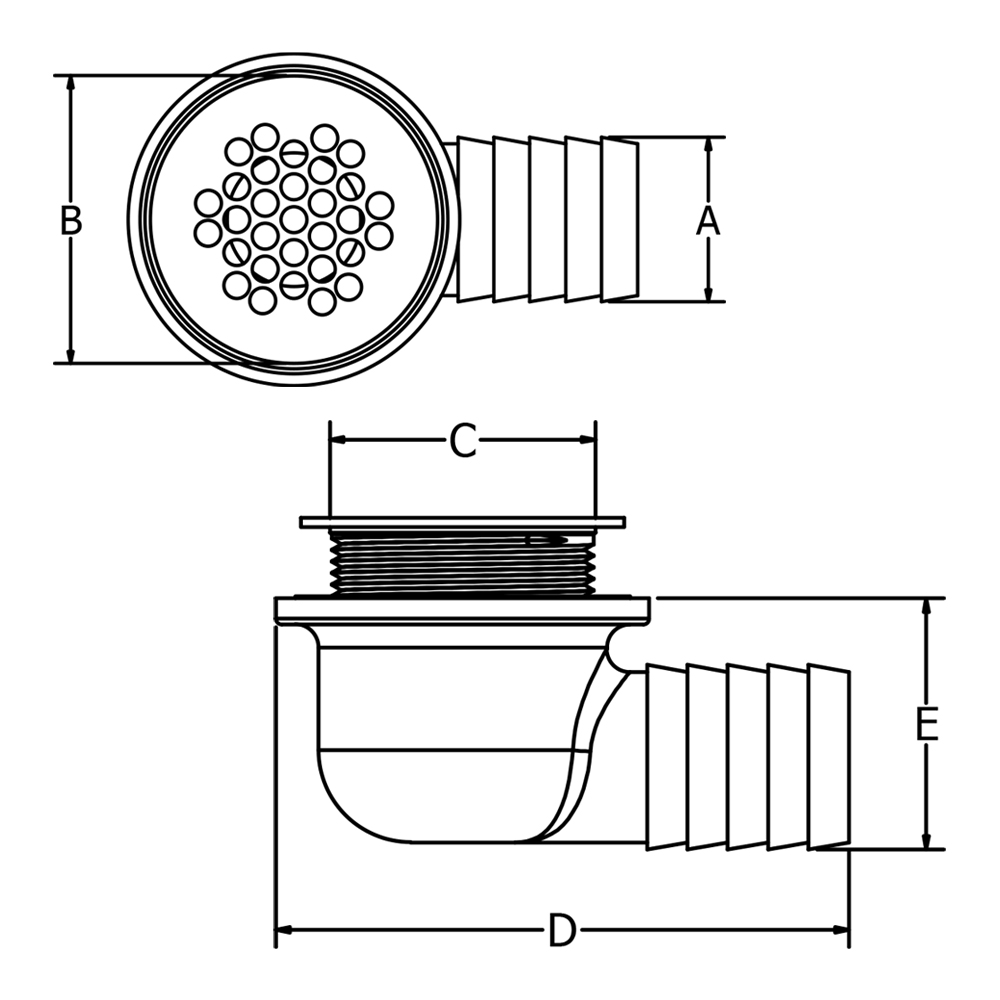

Drawings:
Installed
