Description

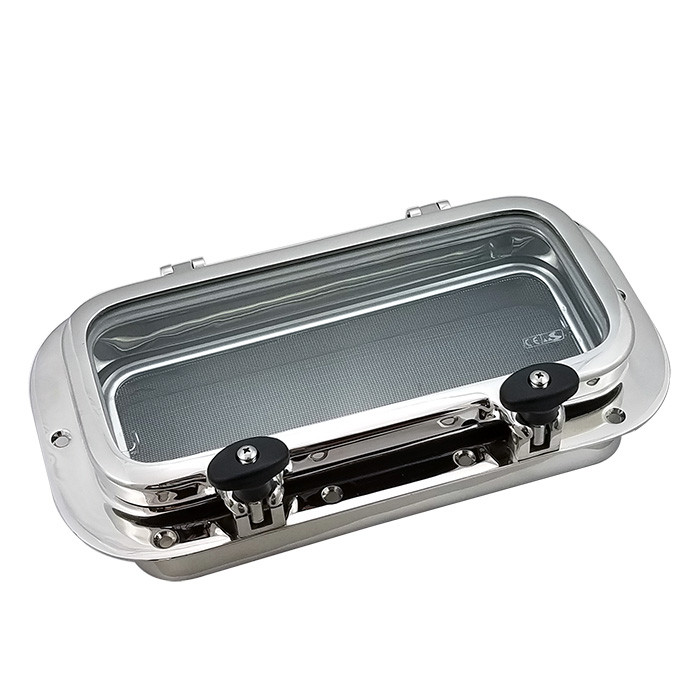

Man Ship 316 SS Rectangular Opening Portlights
Man Ship 316 Stainless Rectangular Opening Portlights | LS
Man Ship 316 Stainless Rectangular Opening Portlights | LS
Features
- 316 Stainless steel machine rolled and formed frame for high grade strength and corrosion resistance
- Hand polished to a brilliant mirror-like finish
- Electro-polishing provides lasting protection against corrosion/rust
- Sealed with weather & uv resistant themo-plastic neoprene gasket
- Standard spigot size “G” sizes available: 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″, 3-1/2″
- Tinted tempered safety glass available
- Glass thickness 5/16″- 3/8″
- Angled or straight spigot
- Custom spigot size “G” available from 1″ – 5″
- Traditional trim ring or h-trim
- Custom portlights
- Additional features/options
- Available with storm cover
- Fixed versions available
Rectangular Opening Portlight (LS)
In Stock:
- LS-0512-15A – 5″ x 12″, with a 1-1/2″ Angled Spigot
- LS-0714-15A – 5″ x 12″, with a 1-1/2″ Angled Spigot
All other sizes require a 90 day leadtime.
| PART NO. ANGLED | PART NO. STRAIGHT | C | D | E | F | R | R1 | GLASS THK | SPIGOT “G” |
|---|---|---|---|---|---|---|---|---|---|
| LS-0512-GA | LS-0512-GS | 5-1/4″ | 12-1/8″ | 7-5/8″ | 14-1/2″ | 1-1/4″ | 2-3/8″ | 1/4″ | Specify when ordering |
| LS-0714-GA | LS-0714-GS | 7-1/4″ | 14-1/4″ | 9-5/8″ | 16-5/8″ | 1-1/4″ | 2-3/8″ | 1/4″ | Specify when ordering |
| LS-0716-GA | LS-0716-GS | 7-1/4″ | 16-1/4″ | 9-5/8″ | 18-5/8″ | 1-1/4″ | 2-3/8″ | 1/4″ | Specify when ordering |
| LS-0718-GA | LS-0718-GS | 7-1/4″ | 18-1/4″ | 9-5/8″ | 20-5/8″ | 1-1/4″ | 2-3/8″ | 1/4″ | Specify when ordering |
| LS-0816-GA | LS-0816-GS | 8-1/4″ | 16-1/4″ | 10-5/8″ | 18-5/8″ | 1-1/4″ | 2-3/8″ | 1/4″ | Specify when ordering |
| LS-0818-GA | LS-0818-GS | 8-1/4″ | 18-1/4″ | 10-5/8″ | 20-5/8″ | 1-1/4″ | 2-3/8″ | 1/4″ | Specify when ordering |
| LS-1020-GA | LS-1020-GS | 10-3/8″ | 20-3/8″ | 12-7/8″ | 22-7/8″ | 1-1/4″ | 2-1/2″ | 3/8″ | Specify when ordering |
| LS-1024 | LS-1024-GS | 10-3/8″ | 24-3/8″ | 12-7/8″ | 26-7/8″ | 1-1/4″ | 2-1/2″ | 3/8″ | Specify when ordering |
| LS-1224-GA | LS-1224-GS | 12-3/8″ | 24-3/8″ | 14-7/8″ | 26-7/8″ | 1-1/4″ | 2-1/2″ | 3/8″ | Specify when ordering |
| LS-1228-GA | LS-1228-GS | 12-3/8″ | 28-3/8″ | 14-7/8″ | 30-7/8″ | 1-1/4″ | 2-1/2″ | 3/8″ | Specify when ordering |
The spigot is the section on the back of the portlight that extends through the hull or cabin wall. When calling or emailing, please specify your spigot size “G”.
Standard sizes: 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″, 3-1/2″. Need a different size? Custom orders available from 1″– 5″.
Standard sizes: 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″, 3-1/2″. Need a different size? Custom orders available from 1″– 5″.
Custom Order Portlights: Click Here
Additional information
| U/M | Each |
|---|---|
| Composition | 316 SS Machined/Rolled Frame, 316 Stainless Steel |
| Finish | Electro-Polished, High Polished, Tempered, Clear Glass |
Installation Guide:
Drawings:

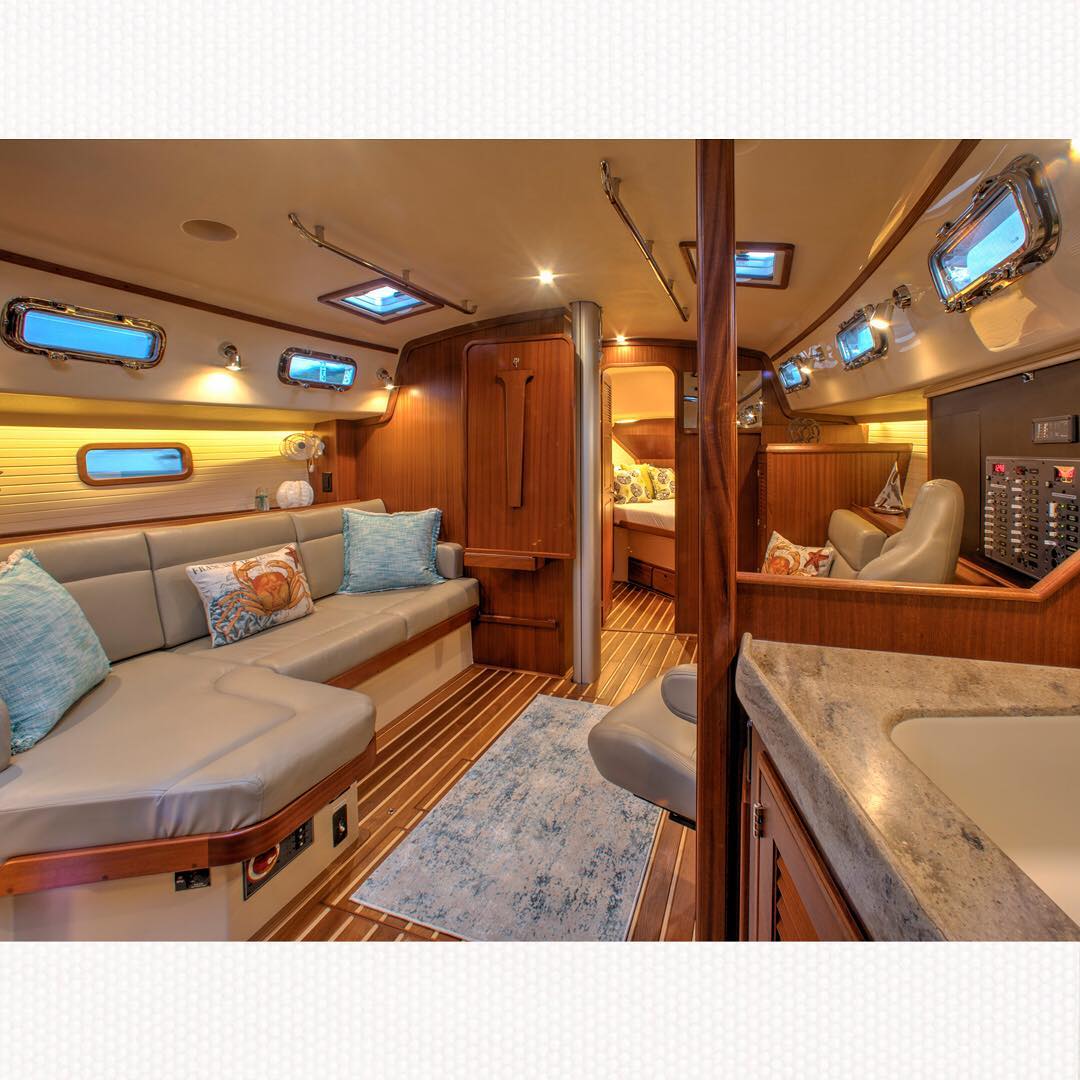

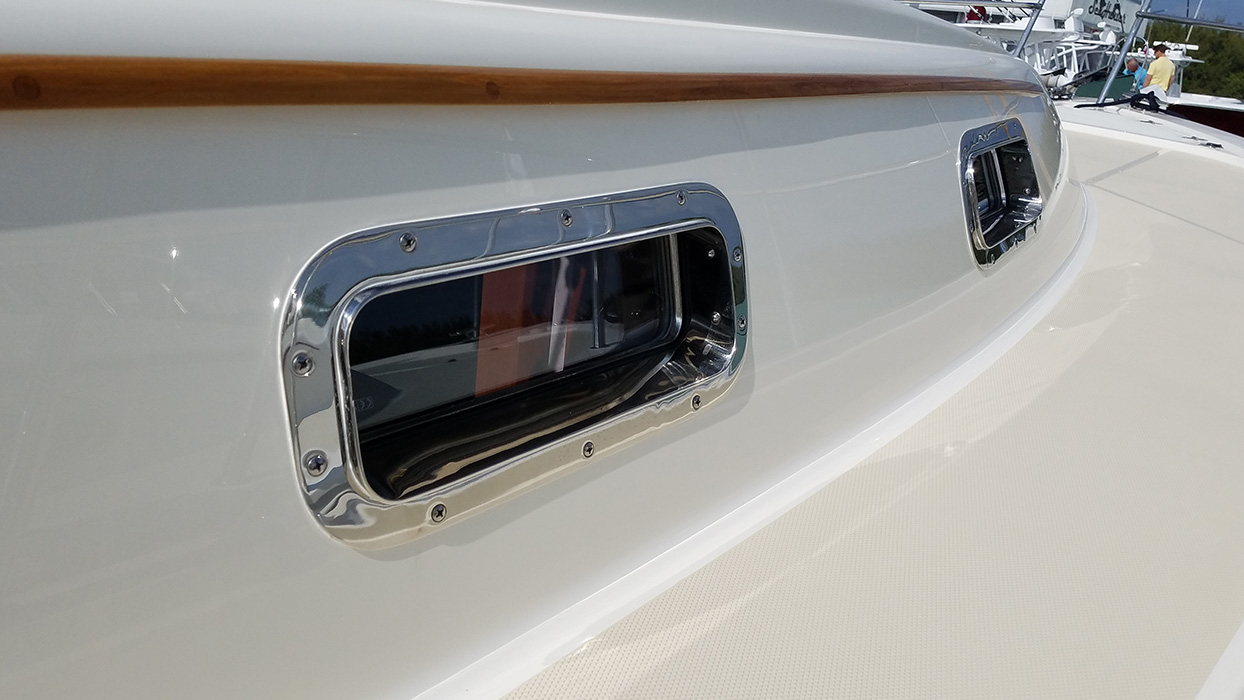

Installed
