| U/M | Each |
|---|---|
| Composition | Gold: Titanium-Plated Stainless Steel, Silver: Chrome-Plated Stainless Steel |
| Finish | High Polished, Satin |
Square Push Button Cabinet Latch
Square Push Button Cabinet Latch
Features
- Silver: chrome-plated stainless steel
- Gold: titanium-plated stainless steel
- Standard door thickness is 3/4″, but can accommodate up to 1″
- Fastener #10 FH
Recommendations
- For 1/2″ door thickness, use 4 spacer plates (7100-08)
- For 5/8″ door thickness, use 2 spacer plates (7100-08)
- For 3/4″ door thickness, no spacers needed
- For 7/8″ door thickness, use 2 spacer rings (7100-07)
- For 1″ door thickness, use 4 spacer rings (7100-07)
| PART NO. | COLOR | A | B | C | D | E | MAX DOOR THICKNESS |
|---|---|---|---|---|---|---|---|
| 7300S | Silver | 1-1/2″ | 2-1/4″ | 7/8″ | 3/4″ | 1-1/8″ | 1″ |
| 7300SA | Satin | 1-1/2″ | 2-1/4″ | 7/8″ | 3/4″ | 1-1/8″ | 1″ |
| 7300G | Gold | 1-1/2″ | 2-1/4″ | 7/8″ | 3/4″ | 1-1/8″ | 1″ |
| PART NO. | DESCRIPTION |
|---|---|
| 7100-07 | Plastic Ring, Thickness 0.021” |
| 7100-08 | Plastic Plate, Thickness 0.033” |
Installation Guide:
Drawings:

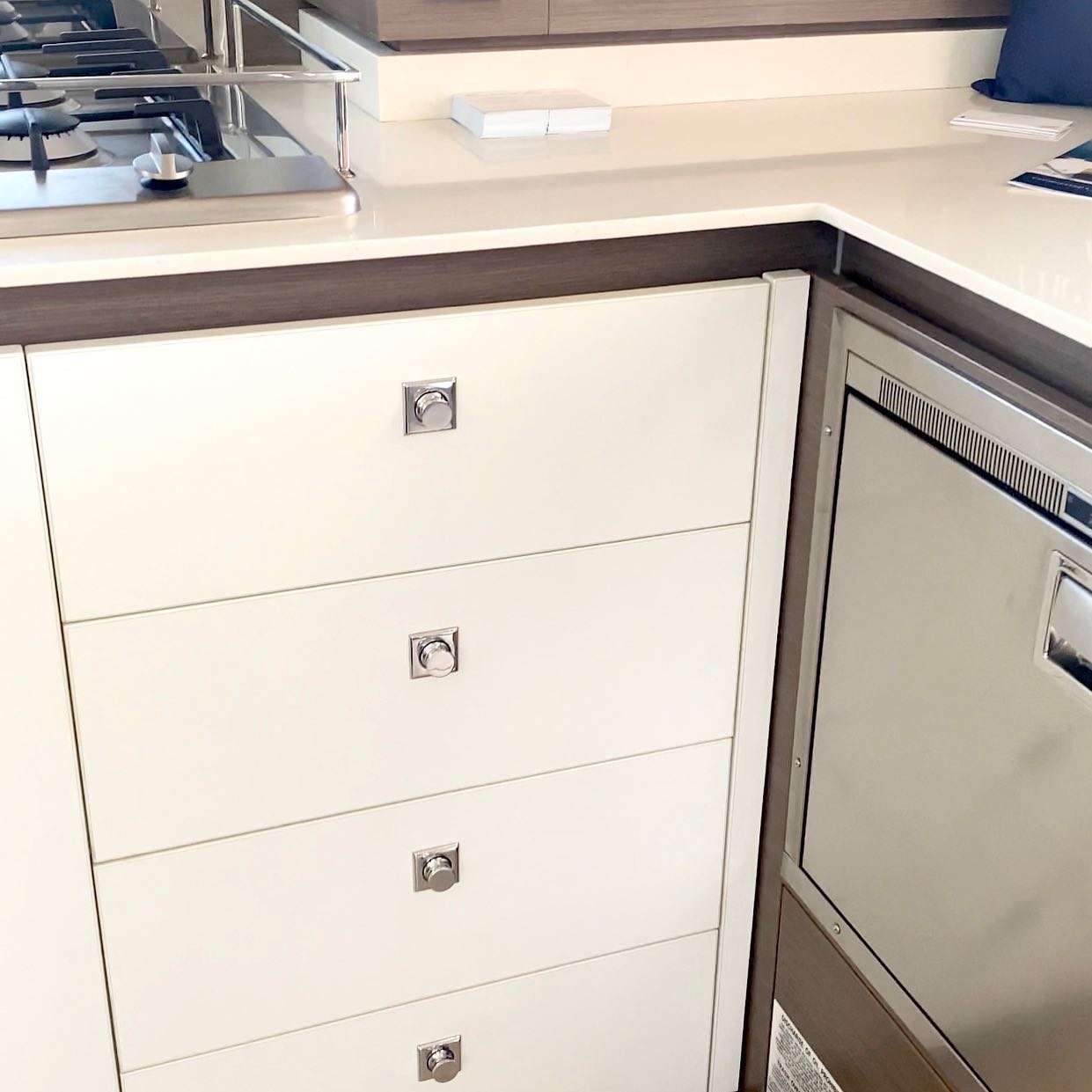

Installed
