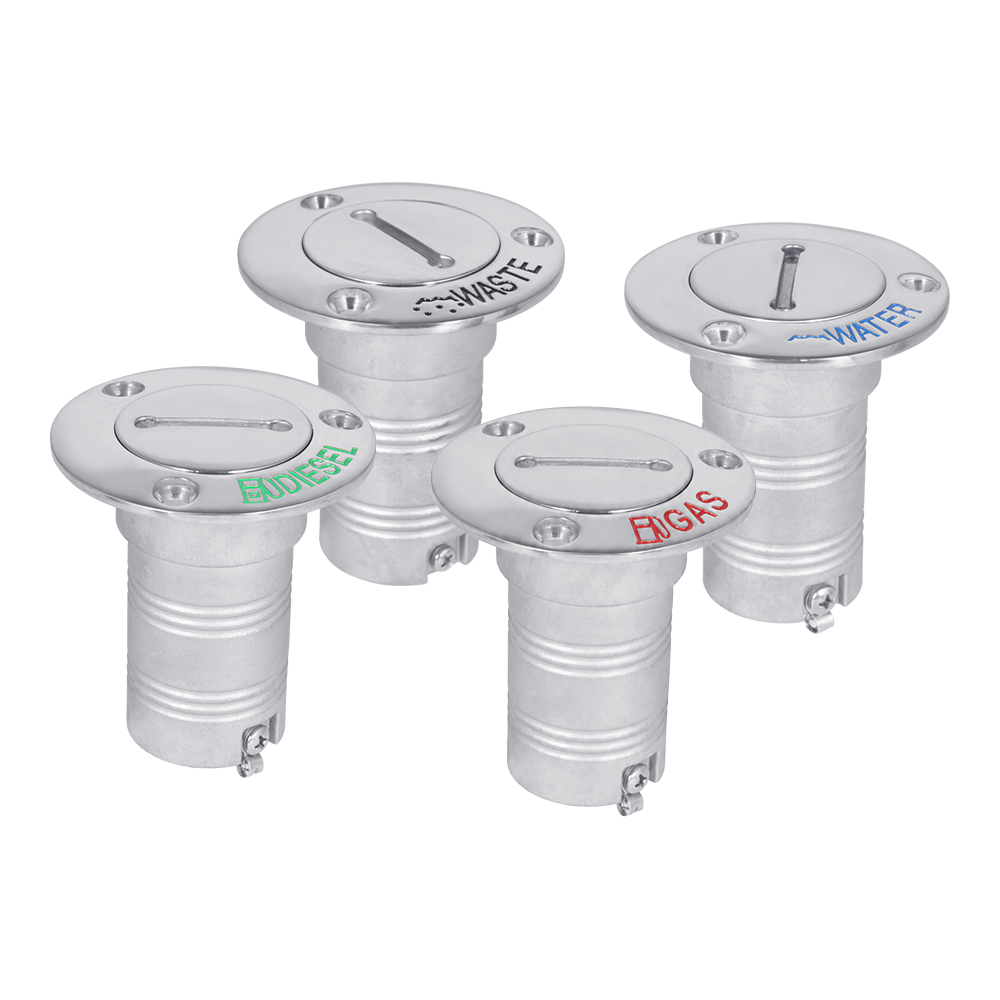

316 SS Cast Deck Fill with Colored Text
316 SS Cast Deck Fill with Colored Text
Features
- 316 Stainless steel cast
- Fastener #12 FH
- Includes key
- Colored text with internationally recognized symbols
- Waste Deck Fills come without the set screw, the cap is unattached
| PART NO. | MARKING | A | B | C |
|---|---|---|---|---|
| 6002SEU | Waste | 1-1/2″ Hose | 3″ | 3″ |
| 6004SEU | Diesel | 1-1/2″ Hose | 3″ | 3″ |
| 6005SEU | Gas | 1-1/2″ Hose | 3″ | 3″ |
| 6006SEU | Water | 1-1/2″ Hose | 3″ | 3″ |
| 6007SEU | Gas | 2″ Hose | 3-3/16″ | 3-1/2″ |
| 6008SEU | Diesel | 2″ Hose | 3-3/16″ | 3-1/2″ |
Additional information
| U/M | Each |
|---|---|
| Composition | Cast 316 Stainless Steel |
| Finish | High Polished |
Installation Guide:

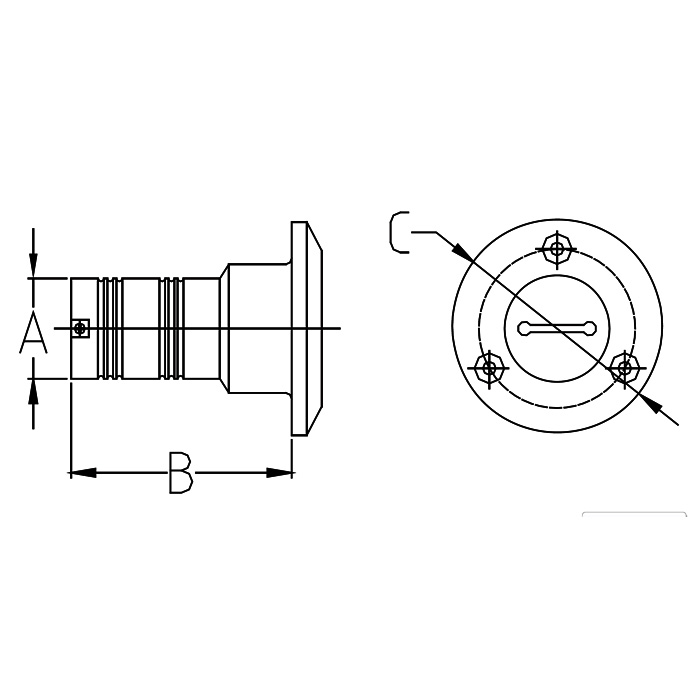

Drawings:
