304 SS Stamped Offset Hinge

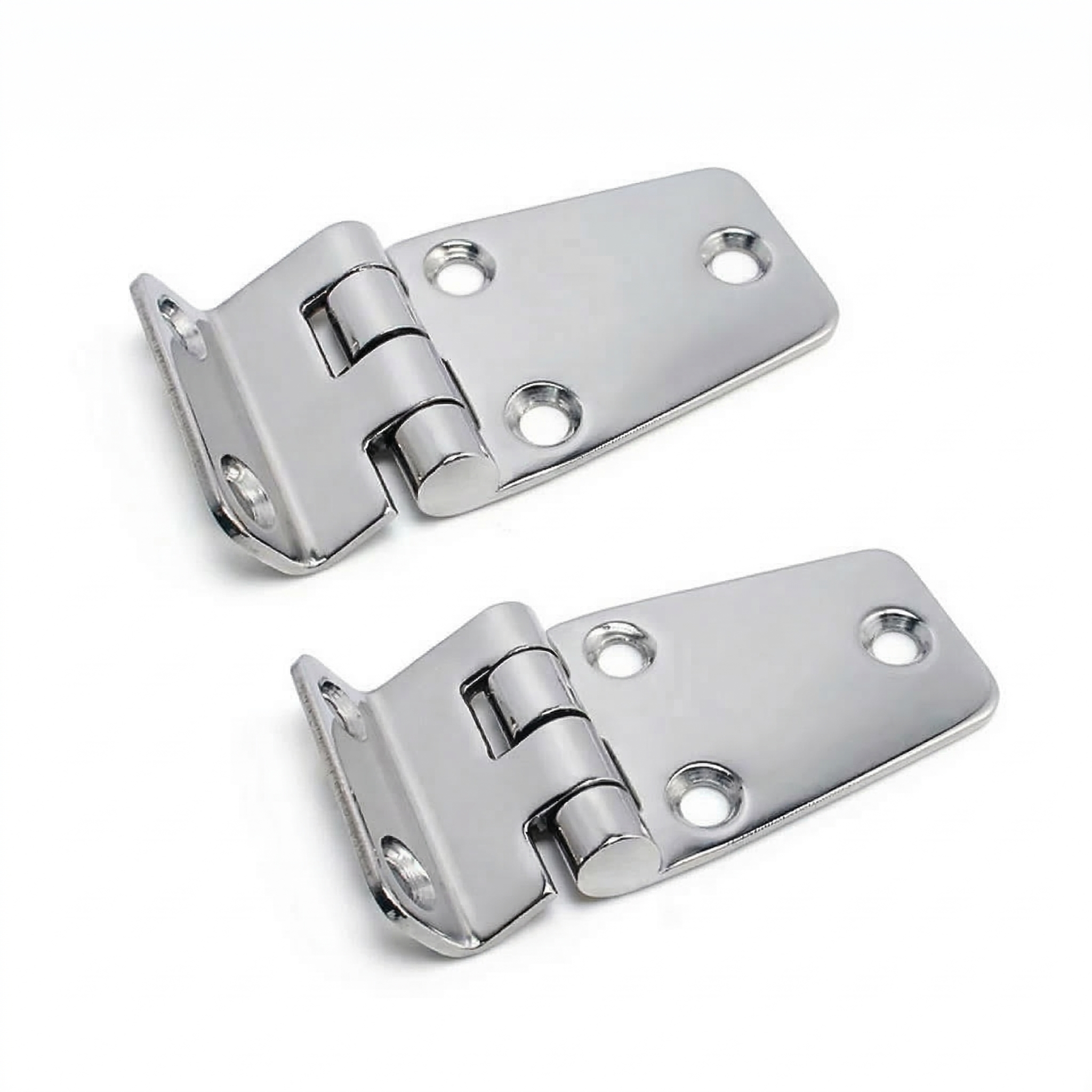

7723ES-304 SS Stamped Offset Hinge
304 SS Stamped Offset Hinge - Image 2

304 SS Stamped Offset Hinge

Features

  • 304 Stainless steel stamped
  • Fastener #12 FH



PART NO. A B C D
7723ES 2-5/8″ 1-7/16″ 1/16″ 3/4″
7724ES 2-5/8″ 1-7/16″ 1/16″ 5/8″
7725ES 2-5/8″ 1-7/16″ 1/16″ 1/2″
Categories: ,

Additional information

U/M

Pair
Composition

Stamped 304 Stainless Steel
Finish

High Polished
Installation Guide:

Drawings:

Installed
