60° Angled Grab Rail

Features

  • 316 Stainless steel tubing
  • 7/8″ tubing
  • Stud 5/16″-18, Stud Length 1-7/8″
  • 60° terminal angle



PART NO. A B C FASTENER OFFSET
7904S 9-5/16″ 8-1/16″ 2-1/2″ 5/16-18” 0°
7914S 9-5/16″ 8-1/16″ 2-1/2″ 5/16-18” 20°
Categories: ,

Additional information

U/M

Each
Composition

316 Stainless Steel
Finish

High Polished
Installation Guide:

Drawings:
7904S 2D CAD Drawing

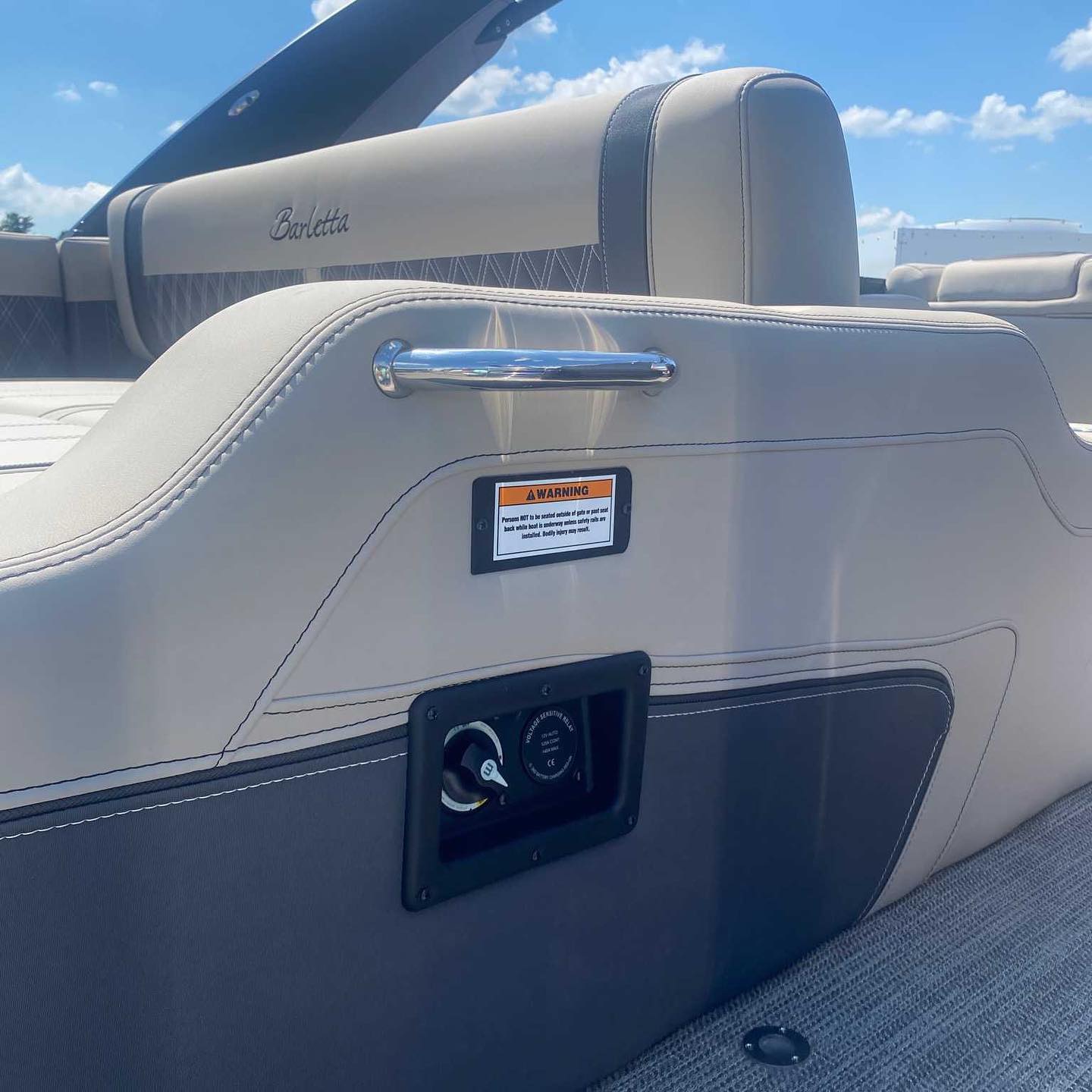

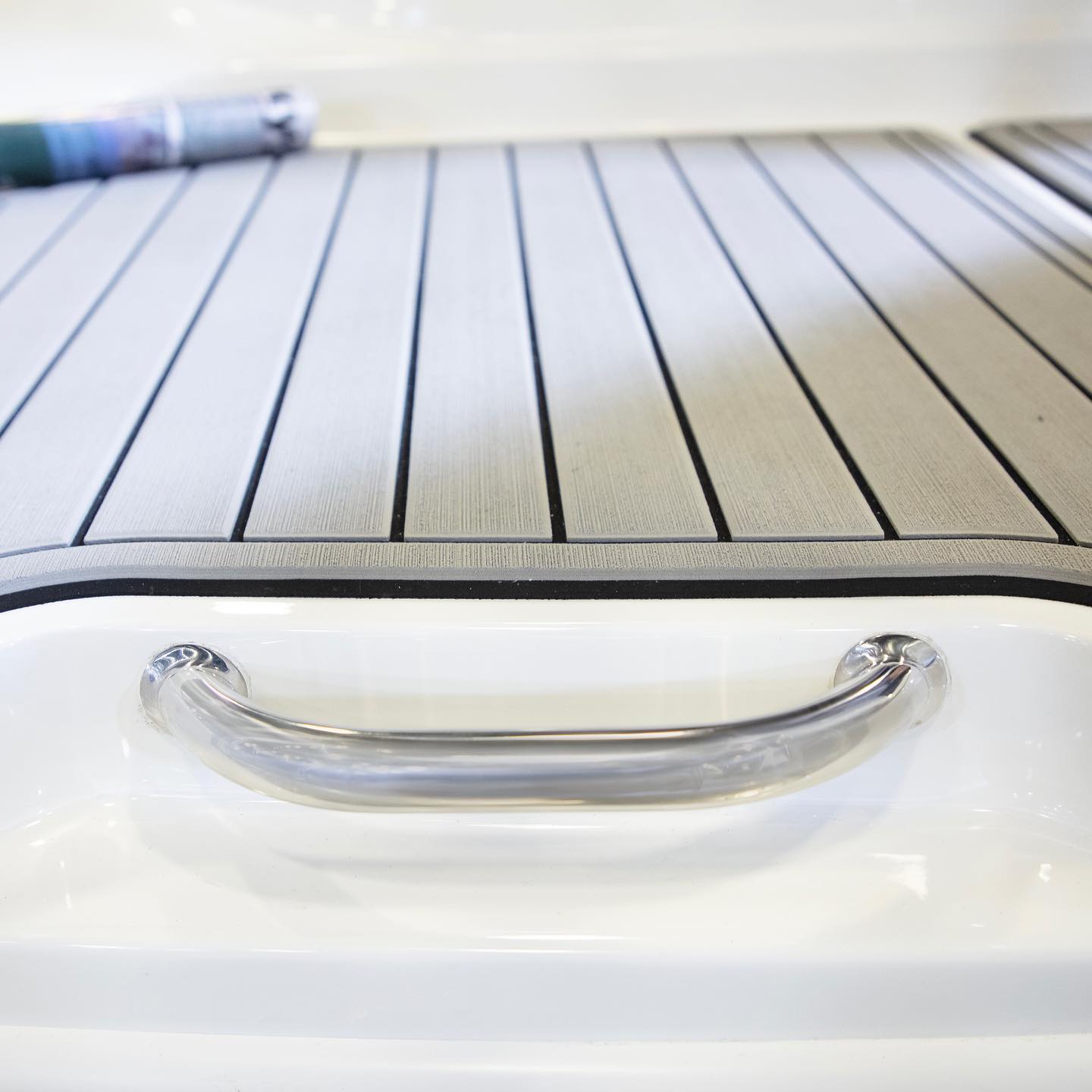

Installed
