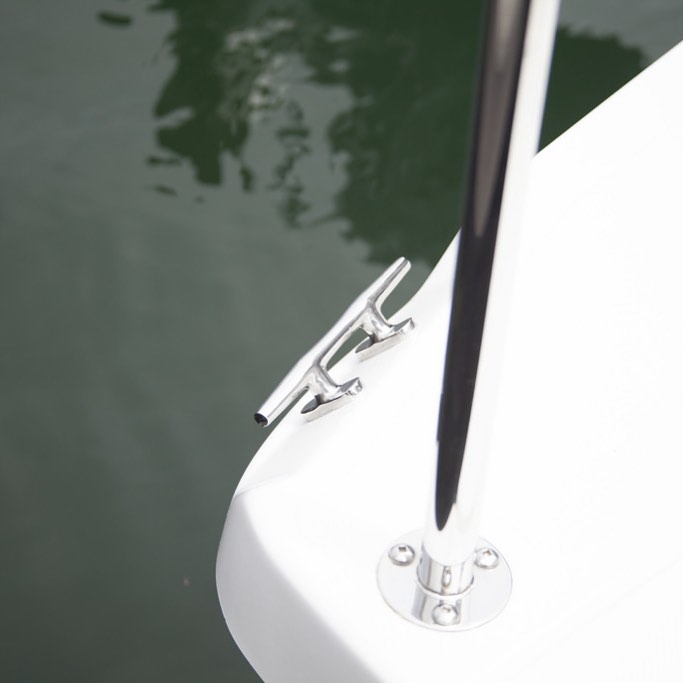

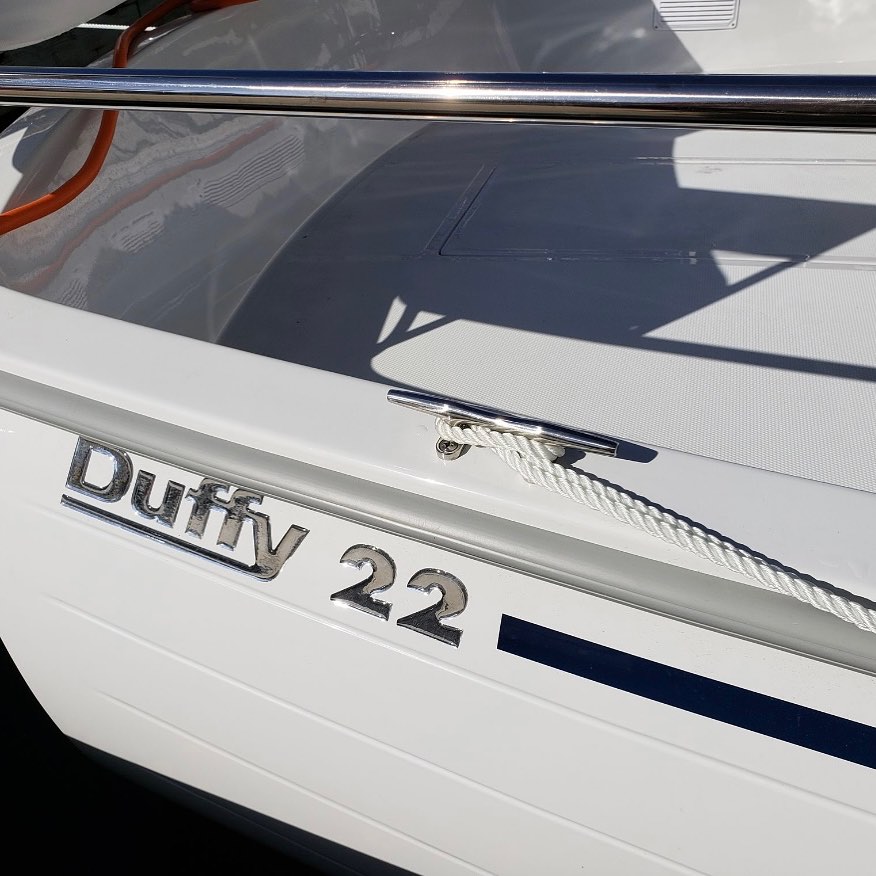

316 SS Cast Classic Herreshoff Cleat

Heavy Duty Herreshoff Cleat

316 SS Cast Classic Herreshoff Cleat

Features

  • 316 Stainless steel cast
  • Top mount
  • Polished finish



PART NO. A B C D E FASTENER
6028S 4-1/2″ 1-1/16″ 1-13/32″ 7/8″ 1-7/8″ #10 FH

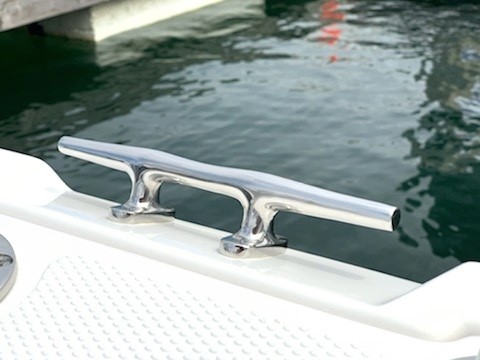

6030S 6″ 1-1/4″ 1-7/8″ 1-1/16″ 2-1/4″ 1/4” FH
6032S 8″ 1-1/2″ 2-3/16″ 1-3/8″ 2-7/8″ 1/4” FH
6034S 10″ 1-7/8″ 2-11/16″ 1-3/4″ 3-11/16″ 5/16” FH
6036S 12″ 2-3/16″ 2-3/4″ 1-5/16″ 3-3/4″ 5/16” FH
Categories: ,

Additional information

Composition

Cast 316 Stainless Steel
Finish

High Polished
Installation Guide:

Drawings:
