Additional information
| Composition | Cast 316 Stainless Steel |
|---|---|
| Finish | High Polished |
Stainless Captive Garboard Drain Plug, Oval
Stainless Captive Garboard Drain Plug, Oval
Features
- Captive plug for convenience and to avoid getting lost
- Plug is threaded at the end for manual removal if needed
| PART NO. | A | B | C | D | E |
|---|---|---|---|---|---|
| 8076S | 2-7/32″ | 1-1/2″ | 7/8″ | 2″ | 7/16″ |
| 8078S | 2-17/32″ | 1-11/16″ | 1-1/8″ | 2-7/32″ | 7/16″ |
| 8076SP | Replacement Plug for 8076S | ||||
| 8078SP | Replacement Plug for 8078S |
Installation Guide:
Drawings:

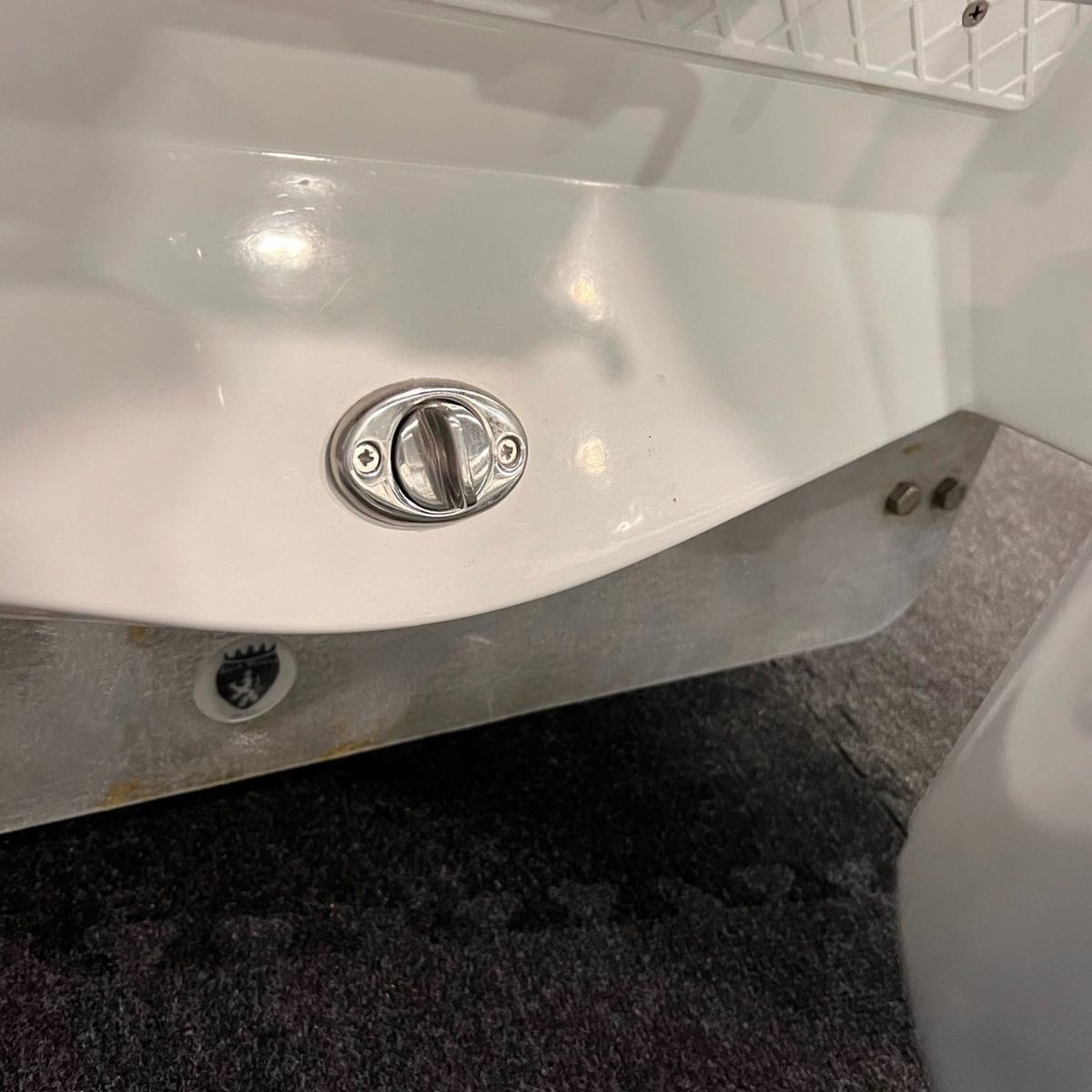

Installed
