50° Angled Grab Rail

50° Angled Grab Rail

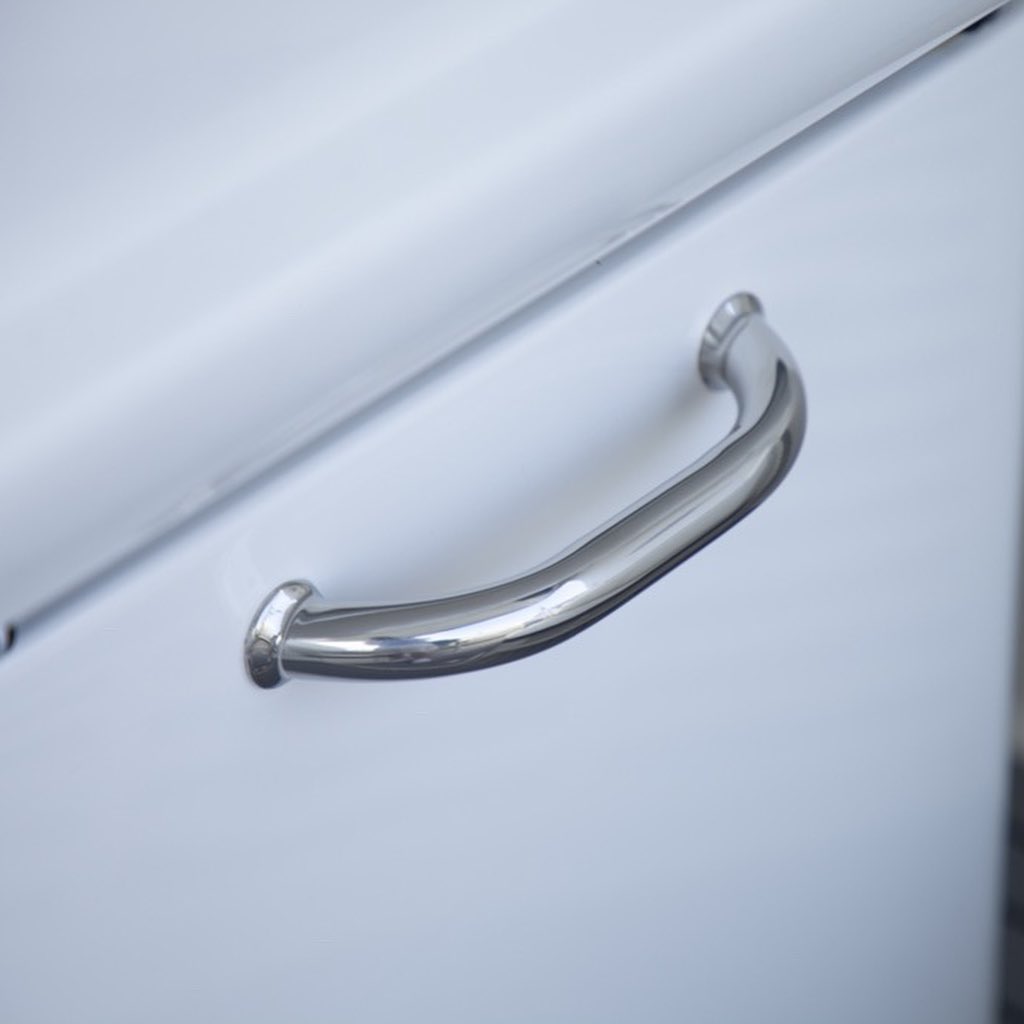

50° Angled Grab Rail - Image 2
50° Angled Grab Rail - Image 3
50° Angled Grab Rail - Image 4

50° Angled Grab Rail

Features

  • 304 Stainless steel tubing
  • 45 Deg terminal angle
  • Stud 5/16″-18, stud length 1-3/8″
  • 7/8″ Tubing







PART NO. Material A B C FASTENER STUD LENGTH
7882S 304SS 9-1/4″ 8″ 2-1/2″ 5/16″-18 1-3/8″
7884S 304SS 12-1/4″ 11″ 2-1/2″ 5/16″-18 1-3/8″
7884S-200 304SS 12-1/4″ 11″ 2-1/2″ 5/16″-18 2″
7886S 304SS 14-1/4″ 13″ 2-1/2″ 5/16″-18 1-3/8″
7888S 304SS 18-1/4″ 17″ 2-1/2″ 5/16″-18 1-3/8″
7889S 304SS 25-1/4″ 24″ 2-1/2″ 5/16″-18 1-3/8″
Categories: ,

Additional information

U/M

Each
Composition

Tubing 304 Stainless Steel
Finish

High Polished
Installation Guide:

Drawings:
7882S 2D CAD Drawing
7884S 2D CAD Drawing
7886S 2D CAD Drawing
7888S 2D CAD Drawing
7889S 2D CAD Drawing

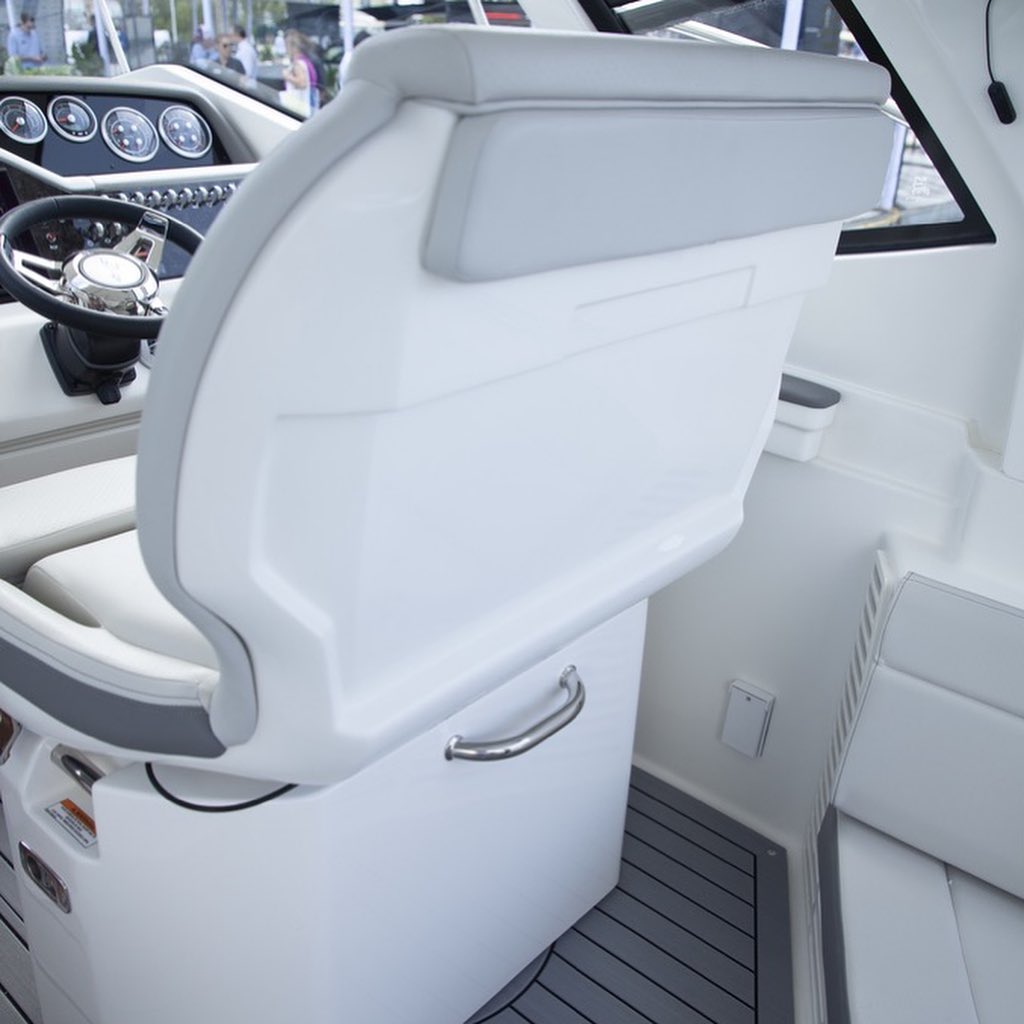

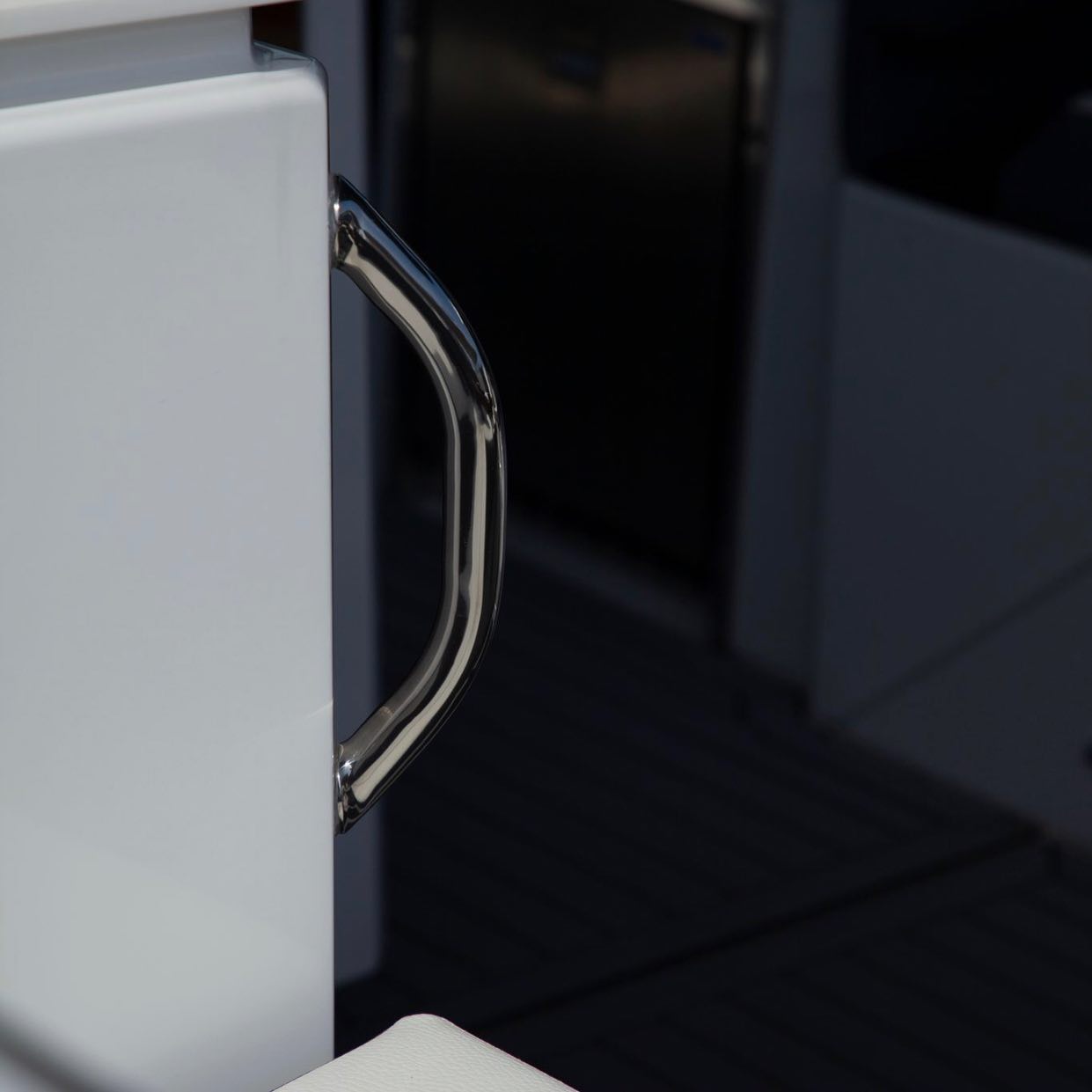

Installed
